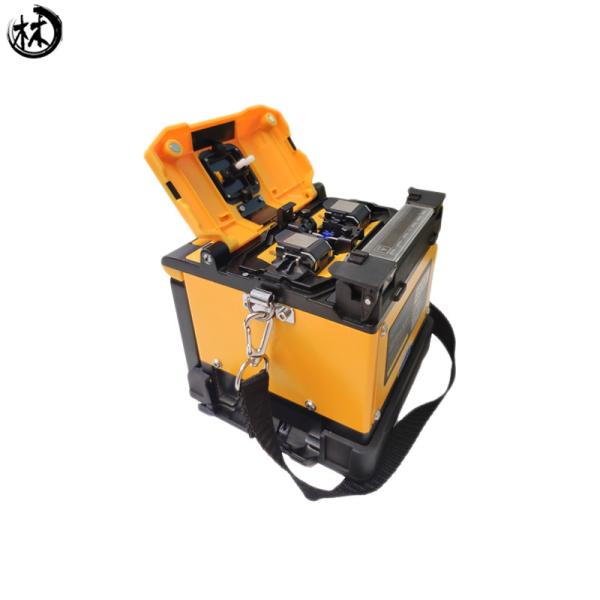

COMWAY A3 Fiber Optic Accessories Suit 5 Sec Splicing Time Strong Performance
COMWAY A3 Fiber Optic Accessories Suit 5 Sec Splicing Time Strong Performance
COMWAY A3 Fiber Optic Accessories Suit 5 Sec Splicing Time Strong Performance
COMWAY A3 Fiber Optic Accessories Suit 5 Sec Splicing Time Strong Performance
COMWAY A3 Fiber Optic Accessories Suit 5 Sec Splicing Time Strong Performance
COMWAY A3 Fiber Optic Accessories Suit 5 Sec Splicing Time Strong Performance
COMWAY A3 Fiber Optic Accessories Suit 5 Sec Splicing Time Strong Performance
COMWAY A3 Fiber Optic Accessories Suit 5 Sec Splicing Time Strong Performance
Specifications
Place of Origin :
USA, China
Brand Name :
COMWAY, COMWAY
Model Number :
A3, Fusion splicer
MOQ :
1 Set
Price :
Negotiable
Number of Conductors :
>= 10
Type :
A3
Color :
Yellow
Splicing time :
5 sec.[SM FAST]
Heating time :
Typical 15sec
Splicer loss :
SM:0.02dB ,MM:0.01dB
Splicing mode :
single fiber
Size&Weight :
D136*W135*H136(mm),1.5kg(1.8kg with battery)
Selling Units :
Single item
Single package size  :
13.63X13.53X13.63 cm
Single gross weight :
1.53 kg
Package Type :
1PCS/BOX
Description
COMWAY A3 Fiber Optic Accessories Suit 5 Sec Splicing Time Strong Performance
Product Description
Size & Weight D136×W135×H136(mm),1.5kg (1.8kg with battery)
Fiber alignment High precision PAS Alignment
Fiber type SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZ/NZDS(ITU-T G.655),BI(ITU-T G.657)
Splice mode Single fiber
Fiber diameter Cladding diameter 80~150um,coating 100~1000um
Cleave length 250um cladding diameter 8~16mm,over 250um cladding diameter 16mm
Splicing programs Max.100
Splicing time 5 sec. [SM Fast] program, 15 sec. [SM G652] program
Heating programs Max.30
Heating time Typical 15 sec.(Adjustable)
Splice protector 10~60mm
Splice image capture Max.300
Splice data storagge Max.20000
Splice loss SM:0.02dB,MM:0.01dB,DS:0.04dB,NZ/NZDS:0.04dB;BI:0.02dB
Return loss >>60dB
Fiber view Two 300x cameras observation,4.1 inch high-light color screen
Operation condition Altitude 0~5000m,Humidity 0~95%,Temperature -20~+50℃,Wind velocity up to 15m/s
Storage condition Humidity 0~95%, Temperature -40~+80℃,(Battery -20~+40℃)
Fiber magnification 300x for X or Y single axis view,150x for both X & Y dual axis view
Battery parameters 4000mAh High capacity battery,more than 240 times splicing and heating
Port High speed USB
Electrodes life 5000 arc discharges
Power supply AC100-240V, 50/60Hz
Batterry paremeters 4000mAh Hight capacity battery, more than 240 tiems splicing and heating, Full charge within 3 hours

COMWAY A3 Fiber Optic Accessories Suit 5 Sec Splicing Time Strong Performance
COMWAY A3 Fiber Optic Accessories Suit 5 Sec Splicing Time Strong Performance
About us

Our factory was established in 1999 which located in Baiyun district Guangzhou City. We are a professional cable manufacture specialized in manufacturing and researching and developing communication products including: UTP/FTP/SFTP CAT5E/CAT6/CAT6A/ CAT7 indoor and outdoor Network cable telecommunication cable telephone wire and CAT5 and CAT6 patch cord. With advanced manufacturing equipment which import from Switzerland and Taiwan We have advanced technology and R&D department to meet international standard our company was approved by s9001:2000 international quality system and also have certificate of CE and RoHs our factory with 30000 square meter manufacturing base hundreds of employees.
