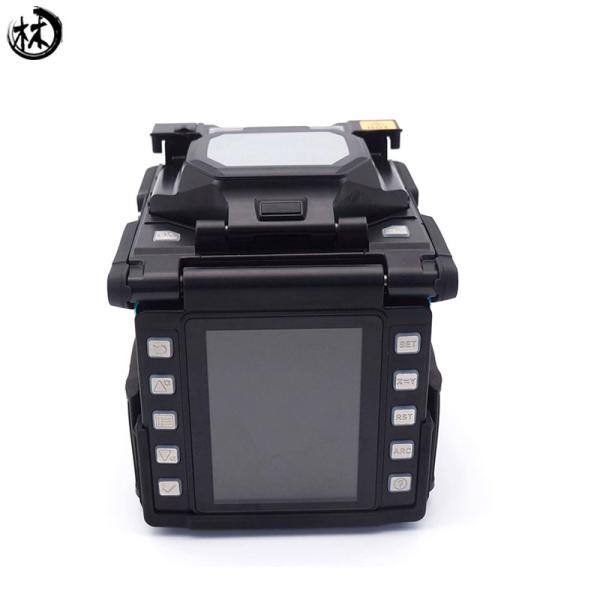

USA Brand Fiber Optic Accessories C8 High Performance FTT X ARC Fusion Splicer
USA Brand Fiber Optic Accessories C8 High Performance FTT X ARC Fusion Splicer
USA Brand Fiber Optic Accessories C8 High Performance FTT X ARC Fusion Splicer
USA Brand Fiber Optic Accessories C8 High Performance FTT X ARC Fusion Splicer
USA Brand Fiber Optic Accessories C8 High Performance FTT X ARC Fusion Splicer
USA Brand Fiber Optic Accessories C8 High Performance FTT X ARC Fusion Splicer
USA Brand Fiber Optic Accessories C8 High Performance FTT X ARC Fusion Splicer
USA Brand Fiber Optic Accessories C8 High Performance FTT X ARC Fusion Splicer
Specifications
Place of Origin :
United States
Brand Name :
COMWAY
Model Number :
C8
MOQ :
1 Piece
Price :
Negotiable
Product name :
high-performance FTTx ARC fusion splicer
Color :
yellow
Touch Screen :
yes
Battery :
Lithium Battery
MOQ :
1Pcs
Packing :
1pcs/box
splicing time :
5 seconds
Weight :
2.5kg with battery
Size :
D156*W135*H149(mm)
Splice mode :
single fiber
Selling Units :
Single item
Single package size  :
17.5X15.5X17 cm
Single gross weight :
3.5 kg
Package Type :
1pcs/box
Description
USA Brand Comway fiber splicer C8 high-performance FTTx ARC fusion splicer
USA Brand Fiber Optic Accessories C8 High Performance FTT X ARC Fusion Splicer
Fusion Splicer

Features :

· The high precision PAS alignment system


· Splicing time 6 sec.

· Heating time 25sec.


· Fast boot technology

· Easy to change electrode and fiber holder

· Fast and easy to use, no need to study

· High-speed USB, maintenance via Internet

· Easy Software upgrade via the internet

· Resist dust, rain, wind, and shock

· CE, RoHS compliant

Package:


1. C8 Main unit

2. High capacity battery*2

3. AC adapter

4. Extra electrodes

5. Cooling tray

6. AC adapter cable

7. DC adapter cable

8. USB cable*2

9. Hand strap

10. Shoulder strap

11. Hard Carrying case

Specifications

Size & Weight D156×W135×H149(mm), 2.0kg without battery, 2.5kg with 7800mAh
Fiber alignment 6 motors core alignment
Fiber type SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)
Splice mode Single fiber
Fiber diameter Cladding diameter 80~150µm, coating 100~1000µm
Cleave length 250µm cladding diameter 8~16mm,over 250µm cladding diameter 16mm
Splicing programs Max. 100
Splicing cycle time 6 sec. SM-SM Fast program,12 sec. AUTO program
Heating programs Max. 30
Heating cycle time Adjustable, 25 sec. typical
Splice protector 10 ~ 60mm
Splice image capture Max. 30
Splice data storage Max. 3000
Splice loss SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB
Return loss >>60dB
Loss estination Provided
Operation condition Altitude 0~5000m, Humidity 0~95%,Temperature,-10~+50°C,
Wind velocity up to 15m/s
Storage condition Humidity 0~95%, Temperature -40~+80°C (Battery -10~+40°C)
Tension 1.96~2.25N
Fiber view Two cameras observation,4.1 inch color screen
Fiber magnification 300x fo X or Y single axis view,
180x for both X&Y dual axis view
Port High speed USB, used for PC software connection and firmware upgrade
Electrode life 3500 arc discharged
Power supply AC100-240V, 50/60Hz
Battery module 7800mAh High capacity battery,more than 300 times splicing and heating.
