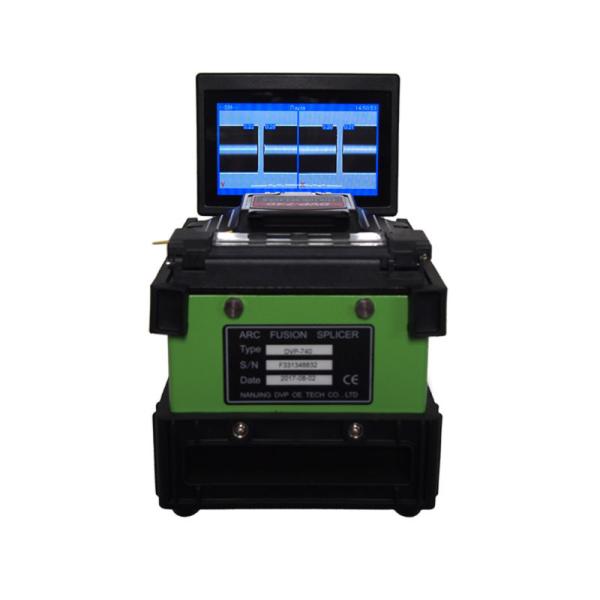

Mini 740 DVP Splicing Machine , Optical Fiber Fusion Splicing Machine
Mini 740 DVP Splicing Machine , Optical Fiber Fusion Splicing Machine
Mini 740 DVP Splicing Machine , Optical Fiber Fusion Splicing Machine
Mini 740 DVP Splicing Machine , Optical Fiber Fusion Splicing Machine
Mini 740 DVP Splicing Machine , Optical Fiber Fusion Splicing Machine
Mini 740 DVP Splicing Machine , Optical Fiber Fusion Splicing Machine
Specifications
Place of Origin :
Guangdong, China
Brand Name :
DVP
Model Number :
740
MOQ :
1 Piece
Price :
Negotiable
Product name :
mini fusion splicer
Color :
GREEN & BLACK
Touch Screen :
yes
Battery :
Lithium Battery
MOQ :
1Pcs
Packing :
1pcs/box
splicing time :
5 seconds
Weight :
3.3kg
Size :
142(W)*122(H)*138(D)mm
Splice mode :
single fiber
Selling Units :
Single item
Single package size  :
16X14X16 cm
Single gross weight :
4.3 kg
Package Type :
1pcs/box
Description
Mini 740 DVP Splicing Machine , Optical Fiber Fusion Splicing Machine
Specifications
Applicable fibers: SM,MM,DS,NZ-DS,EDF
Cladding diameter: 100 to 150um
Coating diameter: 100 to 1000um
Fiber cleaved length: 8-22mm (standard)
Splicing mode: Auto & Manual
Average splice loss: 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Return loss: ≥ 60dB
Environment conditions: -25~+50°C (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)
Storage environment: -40~ +80°C (temperature) , 0~95%RH (humidity)
Protection sleeve length: 20mm ,40mm ,60mm
Tension test: 2.0N (Standard)
Interface: RS232 interface & video output
Language: English, Chinese, Korean, Russian,Spanish etc.
Dimensions: 142(W)×122(H)×138(D)mm
Weight: 3.3kg

Features.

1. It can applicable fibers such as SM/MM/DS/NZ-DS.

3. Reversible monitor with a control panel on each side.

4. Compact & Lightweight.

5. SYSTEM TEST ensures the best working condition.

6. Auto check fiber end face.

7. Auto-calibrates parameters.

8. Store 8000 groups of splice results, and can connect to a computer

9. 8 Kind of Language options: English, Korean, Russian, Portuguese, French, Spanish, German, Chinese.

10. Large capacity internal battery ( Lithium battery 12V 10,000mAh )
