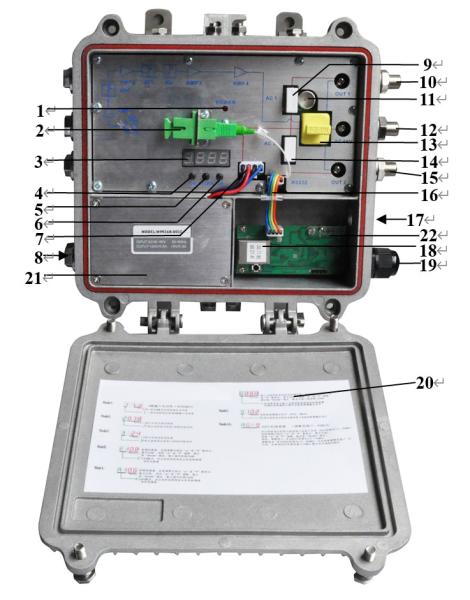

AGC Control CATV Outdoor Optical Receiver Node 60V 220V 2 Ports
AGC Control CATV Outdoor Optical Receiver Node 60V 220V 2 Ports
Specifications
Brand Name :
BEHOME
Place of Origin :
sichuan
Certification :
ISO14001 ISO2000 ISO45001
MOQ :
Negotiable
Price :
Negotiable
Type :
optical node
Output port :
2 ports
Wavelength :
1100-1600nm
Optical connector: :
SCAPC or FCAPC
Description

AGC control two way outputs 60V 220V Outdoor CATV optical receiver node

Product Description

1. 2RF Output FTTB CATV Outdoor Optical node Receiver with AGC

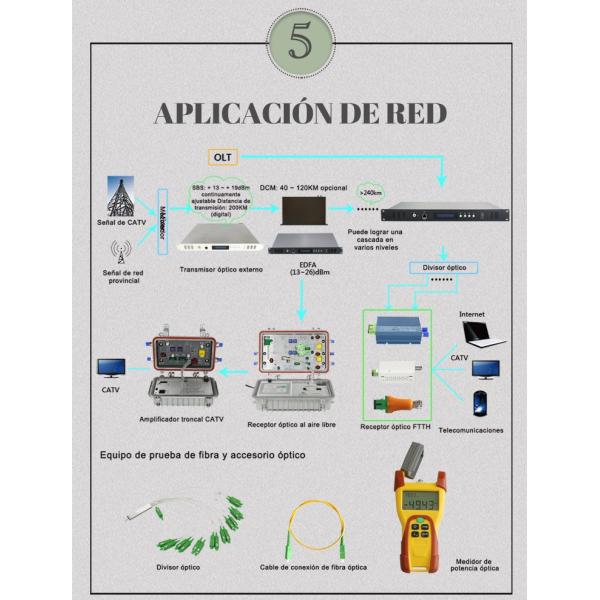

2. 2RF Output FTTB CATV Outdoor Optical node Receiver with AGC can work together with ONU or EOC to realize the network convergence. OR303 AGC control range is +2~-8dBm, when the optical input power +2~-8dBm, the output level will be same, which is easy for debug.
Technical Data OR303 Optical Node
Wave Length 1100~1600nm
Optical input power -8dBm~+2 dBm
Optical AGC range -8dBm~+2 dBm
Optical Return Loss >45dB
Optical Connector FC/APC & SC/APC
Bandwidth 40~750 & 862 & 1006MHz
Flatness ±0.75dB@40~750 MHz ±1dB@40~862&1006 MHz
RF return loss ≥16dB@40~550MHz ≥14dB@550~750@862&1006MHz
ATT adjustable range 0-20dB
EQ adjustable range 0-18dB
RF Impedance 75Ω
C/N (Note3) ≥51dB
CTB(Note 3) ≥65dB
CSO(Note 3) ≥62dB
Power supply AC35-AC90V & AC140V-265V or customized
Main board voltage +24V,+8V
Working Tem. -25℃~+55℃ or customized
Consumption ≤10w
Power supply way 220V@ Chinese outlet with 1m power cord 60V@G283 independent power supply port
Net Size 210X165X90mm(220V) & 225X160X90mm(60V)
Weight withinnerbox 1.3kgs(N.W.1.15kgs)
Wholecartonweight 13kgs(10pcs)
