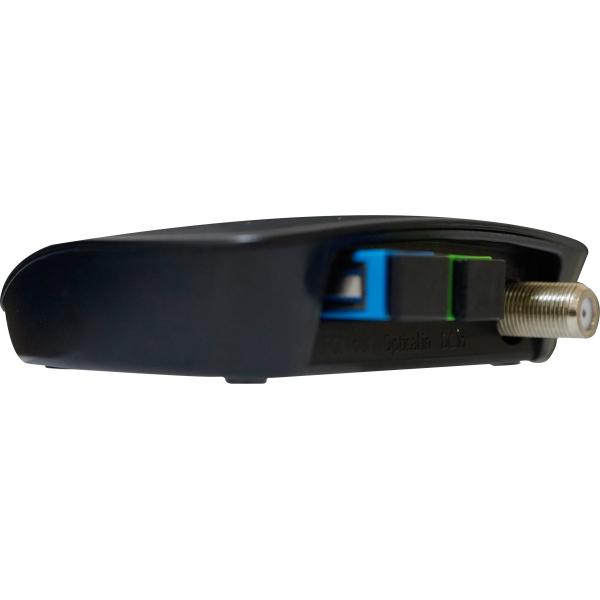

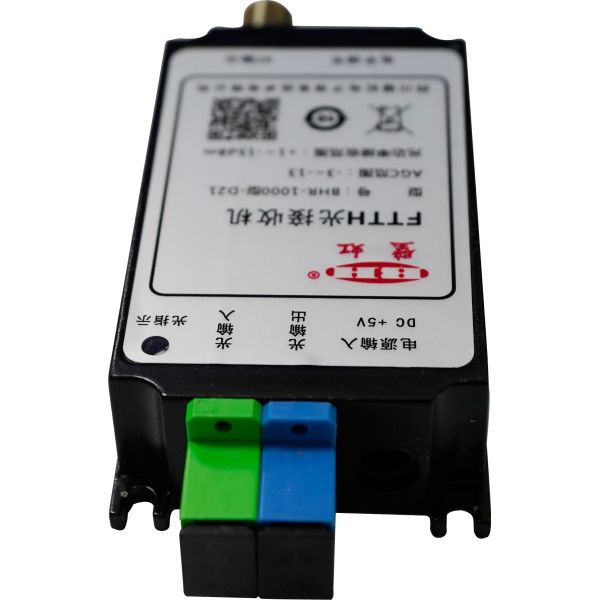

Single Fiber Mini FTTH Passive Optical Receiver 1290nm-1600nm
Single Fiber Mini FTTH Passive Optical Receiver 1290nm-1600nm
Single Fiber Mini FTTH Passive Optical Receiver 1290nm-1600nm
Single Fiber Mini FTTH Passive Optical Receiver 1290nm-1600nm
Single Fiber Mini FTTH Passive Optical Receiver 1290nm-1600nm
Single Fiber Mini FTTH Passive Optical Receiver 1290nm-1600nm
Specifications
Brand Name :
BEHOME
Model Number :
BOR1000P
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10000PCS per month
Delivery Time :
1 month if no any stock
Place of Origin :
sichuan
Certification :
ISO14001 ISO2000 ISO45001
Price :
Negotiable
product Material :
PP Housing
product Color :
Green
Input Level :
-10~+2dBm
Output Frequency :
≥ 54 (when input is -4dBm)
Wavelength :
1290-1600nm
RF :
Imperial or British Type
Description

Cheapest FTTH Mini Portable Passive Optical Receiver Singal Fiber Type

Our company information


1. SICHUAN BIHONG ELECTRONIC INFORMATION TECHNOLOGY CO.,LTD was established in 1992. With nearly 30 years of development, it has become a technology company including R & D of integrating information network technology product, relevant devices manufacturing and system integration proposal design.
2.Our company is a high-tech enterprise whose technology center is named "provincial enterprise technology center", "academician expert workstation" and "Network system integration engineering technology research center", with a number of independent intellectual property rights. 3. In recent years, while being specialized, refined and strong in radio and television transmission field and emergency broadcasting field, the company has fully started upgrading its own business to intelligent community operations , including intelligent building, intelligent school, intelligent areas and any intelligent services to be customized design, complete proposal refers to technical instructions, devices and sales service.

This is Cheapest Type in this Sery, It is worthy to have a try.

Product details

Features Unit Parameters
Input Frequency dBm -10 ~ +2
Return Loss dB > 45
Input Wavelength nm 1290 ~ 1600
Ports SC/APC (OrSC/PC)
Fiber Type Singal
Frequency Range MHz 47~1000
Flatness dB ±1.5
Nominal Output Level dBμV ≥ 54 (when input is -4dBm)
Impedance Ω 75
RF Imperial(Metric as option),Male or Female
MER dB ≥35(@-4dBm)
BER dB ＜1.0E-9
Size mm 50.5*16.6*16.6

why choose us?our advantages

1. One of the famous companies in the industry.
2. With more than 20 years experience on R&D of products.
3. With 30000 square meters workshop and enough capacity.
4. The quality of products has won the praise of domestic and foreign customers.

Product show

Single Fiber Mini FTTH Passive Optical Receiver 1290nm-1600nmSingle Fiber Mini FTTH Passive Optical Receiver 1290nm-1600nmSingle Fiber Mini FTTH Passive Optical Receiver 1290nm-1600nm
