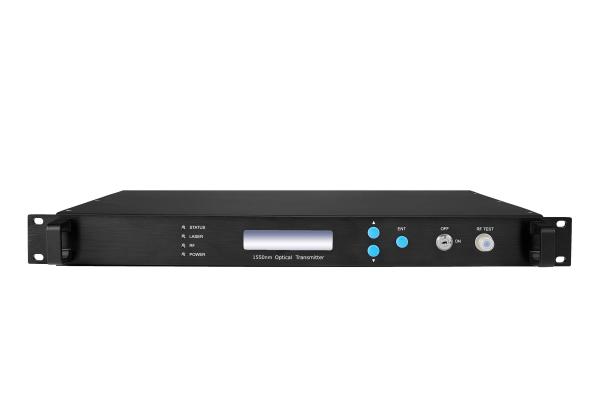

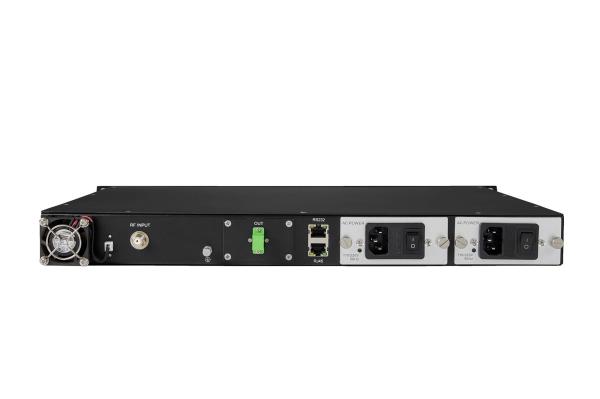

OLT Series Fiber Optic CATV Transmitter Dual Power 220V AC 10W 10dB
OLT Series Fiber Optic CATV Transmitter Dual Power 220V AC 10W 10dB
OLT Series Fiber Optic CATV Transmitter Dual Power 220V AC 10W 10dB
OLT Series Fiber Optic CATV Transmitter Dual Power 220V AC 10W 10dB
OLT Series Fiber Optic CATV Transmitter Dual Power 220V AC 10W 10dB
OLT Series Fiber Optic CATV Transmitter Dual Power 220V AC 10W 10dB
Specifications
Brand Name :
BEHOME
Model Number :
BOT1550-10
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100pcs per month
Delivery Time :
1 month if no any stock
Packaging Details :
54*52*13CM/PC/CARTON
Place of Origin :
sichuan
Certification :
ISO14001 ISO2000 ISO45001
Price :
Negotiable
Material :
Aluminum Alloy Housing
Color :
Black
Dimension :
370×483×44mm
Operation WideBand :
47 - 1000MHz
Output Frequency :
10W(10dB)
Power Supply :
Dual Power 220V AC
RF Connector :
Metric or Imperial Type
Fiber Connector :
SC/APC,FC/UPC/SC/LC
Description

CATV FTTH Direct Optical Transmitter Output 10W (10dB) OEM OLT Series

Direct Optical Transmitter 10W (10dB) -OLT Series

This transmitter is a high-index, multi-functional 1550nm internally modulated optical transmitter in top level. It adopts high linear DFB laser, with built-in pre-distortion compensation and AGC, APC, ATC control, which greatly improves the comprehensive index of the system.

OLT1550 series 1550nm internally modulated optical transmitter is the core device for the construction of CATV secondary transmission networks. It is mainly used for value-added services such as TV image signal, digital TV signal, telephone signal and data (or compressed data) signal. It is a high-quality but low-cost solution to realize triple play and FTTx network transmission systems.

Category Items Unit Index Remarks
Min. Typ. Max.
Optical Index Operating Wavelength Range nm 1528.77 1563.86 Compatible with ITU wavelength
No. of Output Ports 1 2
Output Power per Port dBm 3 10 1dBm interval
Laser Linewidth MHz 0.65 1.0
SMSR dB 45 50
XP dB 20
RIN dB/Hz -160 RIN(20~1002MHz)
Optical Return Loss dB 50
Fiber Connector SC/APC FC/APC,LC/APC
RF Index Operating Bandwidth MHz 47 1002
Input Level dBμV 75 80 85 AGC
Flatness dB -0.75 +0.75 47~1002MHz
Return Loss dB 16 47~1002MHz
Input Impedance Ω 75
RF connector F　Metric/Imperial Specified by user
Link Index No. of Test Channels PAL-D/59CH
CNR dB 51.0

Tx to Rx

Rx -1dBm
CTB dB 65.0
CSO dB 60.0
General Index Network Management Interface SNMP,WEB supported
Power Supply V 90 265 AC
-72 -36 DC
Power Consumption W 30 Dual Power Supply, 1+1 standby
Operating Temp ℃ -5 +65 Auto case temp control
Storage Temp ℃ -40 +85
Operating Relative Humidity % 5 95
Dimension mm 370×483×44 D,W,H
Weight Kg 4.1

Diagram

OLT Series Fiber Optic CATV Transmitter Dual Power 220V AC 10W 10dB

OLT Series Fiber Optic CATV Transmitter Dual Power 220V AC 10W 10dB
