Tunnels VHF Leaky Feeder Cable PVC Low smoke halogen free jacket

• Quick Details:
• Oxygen free copper inner conductor (99.99% copper )
• Virgin grade PE insulation
• Flam retardant jacket
• Low smoke halogen free PE jacket is availiable
• MSHA certificate

Description:

MSHA certified leaky feeder cable, Meet IEC1196 and EN50117.

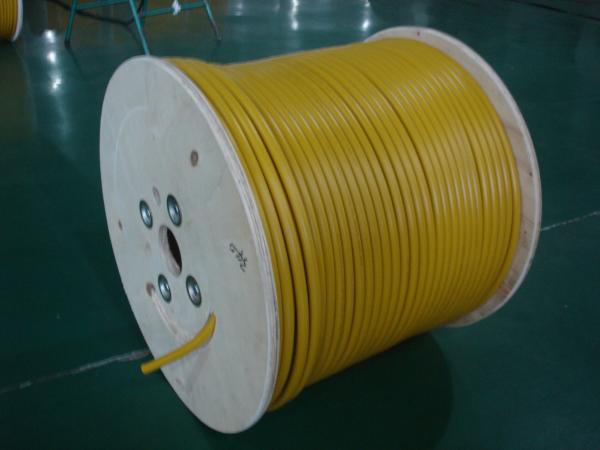

The leaky feeder cable has a radiation pattern of 360 degrees around the cable and can be strapped directly to a centenary cable, water or air pipe. The standard length is 350m or 500m with a yellow outer jacket.

As an option, the cable can be manufactured according to order with a blue color outer jacket and low smoke halogen free jacket is also available.

Applications:

• Mines underground communication system
• metro stations
• tunnels
• ships
• In-building wireless systems.
• perimeter detection

Structure:

1) Inner conducter: Φ2.31mm (Cu)

2) Dielectric: Φ9.50mm (Physical foaming PE)

3) Outer conducter: 0.60x16 (Single twist of bare copper wire)

4) PET foil :0.025x30

5) Inner jecket: (PE, black)

6) Outer Jecket: Φ 15.5 (PVC flame retardant, yellow)

Technical specification:

Impedance: 75±3Ohm

Return ECHO: 0~200Mhz ≥20.8dB

Capacitance: 51.2 pF/m

Attenuation: ≤MHz/dB100m

30 MHz 1.8

85 MHz 3.1

150 MHz 4.15

160 MHz 4.30

185 MHz 500 M<21dB

Coupling loss: 150Mhz 65±10dB

V.S.W.R.: 0~200Mhz ≤1.2

Insulation resistance: ≥1000MOhm.km

Conductor DCR: ≤45 Ohm/km

V.C.D.: 25kv/1 min

Competitive Advantage:

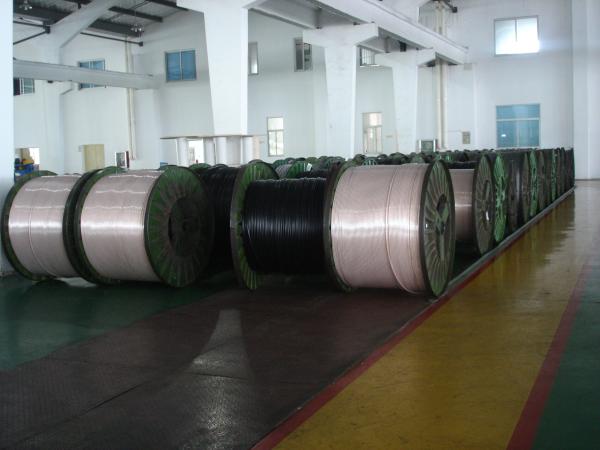

• Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
• Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
• Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
• Over 10 years of experience on leaky feeder cable, big market share in oversea leaky feeder cable industry.
