PVC Jacket 4D-FB Coaxial Cable , Braided 50 Ohm Cable for 3G GSM CDMA Telecommunication System
PVC Jacket 4D-FB Coaxial Cable , Braided 50 Ohm Cable for 3G GSM CDMA Telecommunication System
PVC Jacket 4D-FB Coaxial Cable , Braided 50 Ohm Cable for 3G GSM CDMA Telecommunication System
PVC Jacket 4D-FB Coaxial Cable , Braided 50 Ohm Cable for 3G GSM CDMA Telecommunication System
PVC Jacket 4D-FB Coaxial Cable , Braided 50 Ohm Cable for 3G GSM CDMA Telecommunication System
PVC Jacket 4D-FB Coaxial Cable , Braided 50 Ohm Cable for 3G GSM CDMA Telecommunication System
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
Model Number :
4D-FB coaxial cable
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Packaging Details :
100/200m/305/1000FT or according to client’s request
Delivery Time :
Within 2 weeks
Payment Terms :
T/T, L/C,DP
Supply Ability :
10,000KM per month
Description

PVC Jacket 4D-FB Coaxial Cable , Braided 50 Ohm Cable for 3G GSM CDMA Telecommunication System

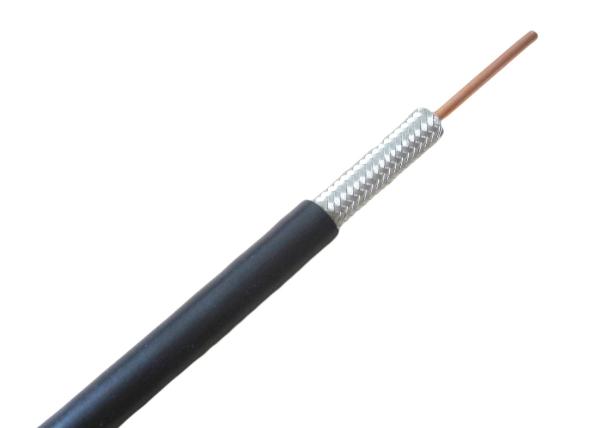

4D-FB coaxial cable, bare copper as inner conductor, Dielectric core is insulating grade virgin polyethylene, AL foil+ tinned copper wire as shield, PVC or PE for outer jacket.

Applications

4D-FB coaxial cable is used in 3G, GSM, and CDMA telecommunication system, digital microwave communication system, and aeronautics and space industry, precise instrument.

Specifications:



construction

Testing item

Unit

Standard

Inner conductor

material

-

Copper clad aluminum

diameter

mm

1.42+/-0.01

Dielectric

material

-

foamed PE

diameter

mm

3.8mm

1st shield, tape

material

-

BAP

2nd shield, braid

material

-

Tinned copper wire

Electrical properties

coverage

%

35-85%

jacket

PVC

mm

6.1+/-0.2mm

Nominal velocity of propagation

%

82%

Capacitance

pF/M

81

Characteristic impedance

Ω

50 +/-3

V.S.W.R

1.25

Attenuation
20℃(max)

150MHZ

dB/100m

10.00

200MHZ

11.50

280MHZ

12.90

350MHZ

16.50

400MHZ

17.60

800MHZ

23.60

900 MHZ

24.50

1200 MHZ

28.30

1500 MHZ

33.50

1900 MHZ

37.70

2000 MHZ

38.70

2400 MHZ

42.60

3000 MHZ

48.60


Competitive Advantage:

  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
