7/8 Inches Radiating Leaky Feeder Cable , Coupling Leaky Cable With Corrugated Copper Tape
7/8 Inches Radiating Leaky Feeder Cable , Coupling Leaky Cable With Corrugated Copper Tape
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000, ISO14001,RoSH, MSHA
Model Number :
Radiating cable7/8″
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Packaging Details :
350m/500m/or according to client’s request
Delivery Time :
5 days
Payment Terms :
T/T, L/C,DP
Supply Ability :
1000 KM per month
Description

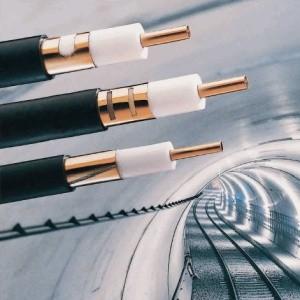

7/8 Inches Radiating Leaky Feeder Cable , Coupling Leaky Cable With Corrugated Copper Tape

Inner conductor is copper clad aluminum, smooth copper tube or helix copper tube is also avaliable for inner conductor as different options. insulation is high physically foaming PE. Outer conductor is slotted and corrugated copper tape. PE for outer jacket.

Applications:

  • metro stations
  • wireless In-building solutions
  • tunnels
  • Wireless mobile communication
  • Wireless alarming system


Specification:


construction

Testing item

Unit

Standard

Inner conductor

material

-

smooth copper tube

diameter

mm

9.00

Dielectric

material

-

Foamed PE

diameter

mm

22.30

Outer conductor

material

-

lotted and corrugated copper tape

diameter

mm

24.90

jacket

PE

mm

27.50

Capacitance

pF/M

76

Characteristic impedance

Ω

50+/-2

Velocity

%

88%

Attenuation

20℃(max)

900MHZ

dB/100m

5.30

1800MHZ

7.60

Coupling loss, tested at distance of 2 m

900MHZ


50%/95%

74dB/85 dB

1800MHZ

80dB/87dB

mechanical performance

single bending radius

mm

140

repeated bending radius

mm

250

tensile strength

N

1500


Competitive Advantage:

  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
  • Over 10 years of experience on leaky feeder cable, big market share in oversea leaky feeder cable industry.
