Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000, ISO14001,RoSH, MSHA
Model Number :
Mine communication cable
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Packaging Details :

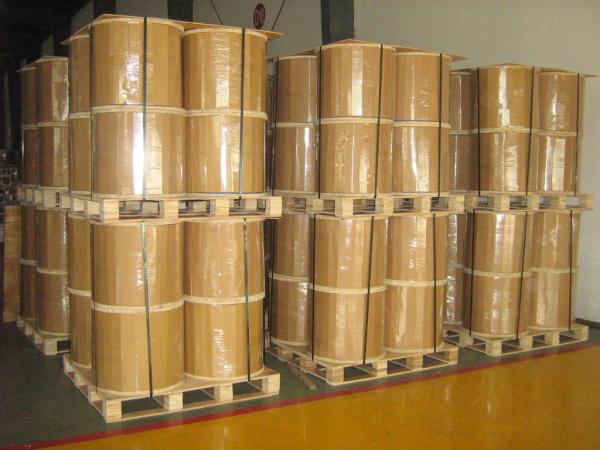

350m/500m/1000m or according to client’s request
Delivery Time :
5 days
Payment Terms :
T/T, L/C,DP
Supply Ability :
1000 KM per month
Description

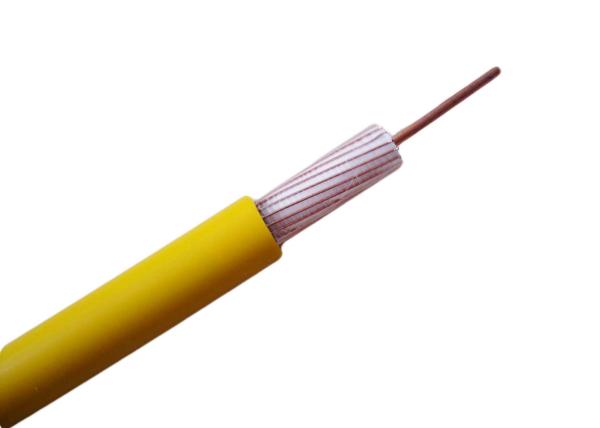

MSHA Certified Leaky Feeder Cable , 75 ohm Mine Site Communication Cable MSHA leaky feeder cable

Quick Details

  • High quality oxygen free copper 99.99%
  • Virgin grade PE insulation
  • Flame retardant jacket
  • Low smoke free halogen jacket is availiable
  • MSHA certificate

Description:

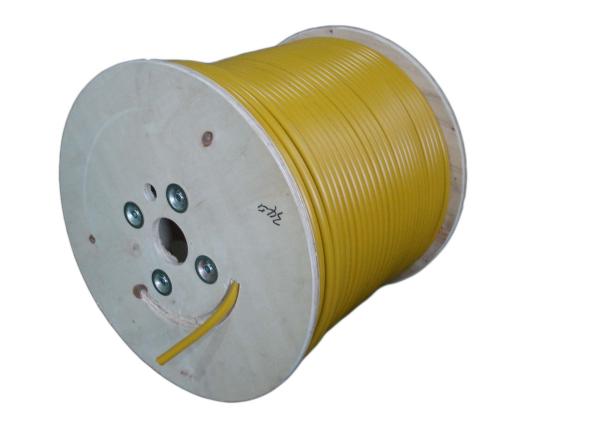

The standard length is 350m or 500m with a yellow outer jacket.The leaky feeder cable has a radiation pattern of 360 degrees around the cable and can be strapped directly to a centenary cable, water or air pipe. MSHA certified leaky feeder cable, Meet IEC1196 and EN50117.

As an option, the cable can be manufactured according to order with a blue color outer jacket and low smoke halogen free jacket is also available.

Applications:

  • tunnels
  • ships
  • In-building wireless systems.
  • perimeter detection
  • Mines underground communication system
  • metro stations

Specification:

NO. Items Technical Requirements
1 Inner conductor CU 2.31±0.03mm
2 Dielectric FPE 9.50±0.20mm
3 Outer conductor CU 16*0.60mm
4 Inner jacket PE 13.0±0.30mm
5 Outer jacket PVC 15.5±0.50mm
6 impedance 75±3Ω
7 Frequency 5-500 MHz
8 DC resistance inner conductor ≤4.1Ω/km
9 DC resistance outer conductor ≤3.9Ω/km
10 Capacitance Pf/m 51±2
11 Insulation resistance ＞10.4Ω/km
12 MIN. bend radius 150mm
13 Coupling loss(50%), dB 65±10
14 Operating temperature -40 to +70 centigrade

15

Attenuation@20℃

≤dB/100m

 85 MHz ≤3.4dB
150 MHz ≤4.2dB
160 MHz ≤4.8dB
450 MHz ≤6.1dB

Competitive Advantage:

  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
  • Over 10 years of experience on leaky feeder cable, big market share in oversea leaky feeder cable industry.
