Radio Mine system , VHF Leaky Feeder Cable MSHA 75 Ohms Leaky Cable For Mines
Radio Mine system , VHF Leaky Feeder Cable MSHA 75 Ohms Leaky Cable For Mines
Radio Mine system , VHF Leaky Feeder Cable MSHA 75 Ohms Leaky Cable For Mines
Radio Mine system , VHF Leaky Feeder Cable MSHA 75 Ohms Leaky Cable For Mines
Radio Mine system , VHF Leaky Feeder Cable MSHA 75 Ohms Leaky Cable For Mines
Radio Mine system , VHF Leaky Feeder Cable MSHA 75 Ohms Leaky Cable For Mines
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000, ISO14001,RoSH, MSHA
Model Number :
MSHA leaky feeder cable
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Packaging Details :
350m/500m/1000m or according to client’s request
Delivery Time :
5 days
Payment Terms :
T/T, L/C,DP
Supply Ability :
1000 KM per month
Description

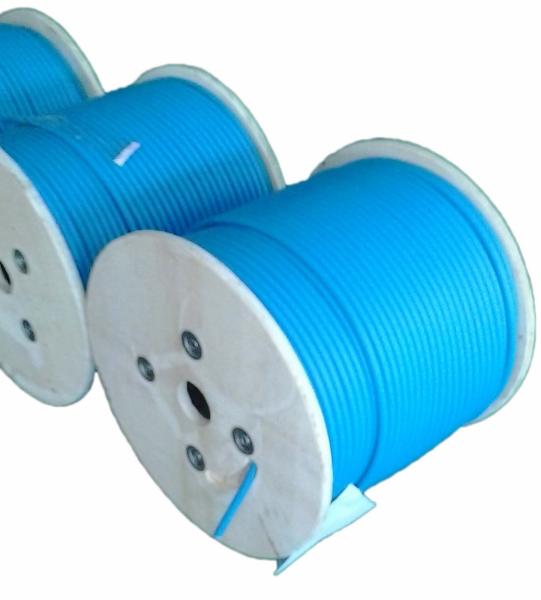

Radio Mine System , VHF Leaky Feeder Cable MSHA 75 Ohms Leaky Cable For Mines

Quick Details:

  • MSHA Certificate
  • Solid Oxygen Free Copper Inner Conductor
  • Bare Copper Wire Braiding
  • Low Smoke Halogen Free Jacket or Fire Retardant Jacket
  • VHF Leaky Feeder Cable
  • 75 Ohm Leaky Feeder Cable

Product description:

The leaky feeder cable has a radiation pattern of 360 degrees around the cable and can be strapped directly to a centenary cable, water or air pipe. The standard length is 350m or 500m with a yellow outer jacket.As an option, the cable can be manufactured according to order with a blue color outer jacket and low smoke halogen free jacket is also available.

MSHA certified leaky feeder cable, Meet IEC1196 and EN50117.

Applications:

  • Mines underground communication system
  • metro stations
  • tunnels
  • ships
  • In-building wireless systems.
  • perimeter detection


Specification:

Inner conductor

2.31mm bare copper

Dielectric

9.50mm

Outer conductor

16x0.6 bare copper wire

Outer jacket

15.0mm+/-0.2mm

Frequency

5 to 500MHZ

impedance

75 ohms

Attenuation @160 MHZ

4.2dB/100m

DC resistance inner conductor

＜4.5 ohm/km

DC resistance outer conductor

＜4.1 ohm/km

capacitance

54 pF/m

Insulation resistance

＞10.4m ohm/km

MIN. bend radius

150mm

Operating temperature

-40 to +70 centigrade

Competitive Advantage:

  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
  • Over 10 years of experience on leaky feeder cable, big market share in oversea leaky feeder cable industry.
