Corrugated Copper RF Coaxial Cable RF 5/8 Inches Feeder Cable For Wireless Communication
Corrugated Copper RF Coaxial Cable RF 5/8 Inches Feeder Cable For Wireless Communication
Corrugated Copper RF Coaxial Cable RF 5/8 Inches Feeder Cable For Wireless Communication
Corrugated Copper RF Coaxial Cable RF 5/8 Inches Feeder Cable For Wireless Communication
Corrugated Copper RF Coaxial Cable RF 5/8 Inches Feeder Cable For Wireless Communication
Corrugated Copper RF Coaxial Cable RF 5/8 Inches Feeder Cable For Wireless Communication
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000, ISO14001,RoSH
Model Number :
RF cable 5/8’’
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price

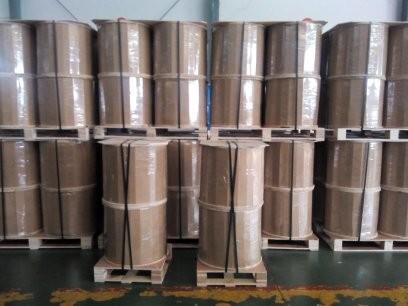

Packaging Details :
350m/500m/or according to client’s request
Delivery Time :
Within 15 days
Payment Terms :
T/T, L/C,DP
Supply Ability :
2000 KM per month
Description

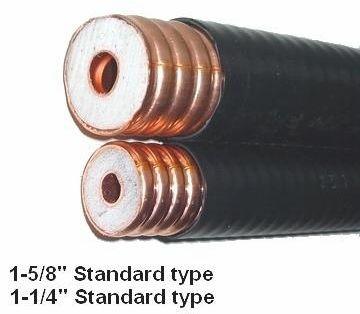

Corrugated Copper RF Coaxial Cable RF 5/8 Inches Feeder Cable For Wireless Communication
Outer conductor is corrugated copper tape. PE for outer jacket.Inner conductor is copper clad aluminum, smooth copper tube or helix copper tube is also avaliable for inner conductor as different options. insulation is high physically foaming PE.

Applications:

  • metro stations
  • wireless In-building solutions
  • tunnels
  • Wireless mobile communication
  • Microwave telecommunication
  • Military use


Specification:



construction

Testing item

Unit

Standard

Inner conductor

material

-

smooth copper tube

diameter

mm

7.05

Outer conductor

material

-

corrugated copper tape

diameter

mm

19.80

jacket

PE or halogan free

mm

22.20

mechanical performance

single bending radius

mm

90

repeated bending radius

mm

200

electrical performance

inner conductor resistance

Ω/km

≤0.49

outer conductor resistance

≤1.37

Capacitance

pF/M

76

Characteristic impedance

Ω

50+/-1

Velocity

%

89

Attenuation
20℃(max)

100MHZ

dB/100m

1.55

200MHZ

2.24

300 MHZ

2.78

450 MHZ

3.46

800 MHZ

4.75

900 MHZ

5.0

1000 MHZ

5.38

1500 MHZ

6.78

1800 MHZ

7.54

2000 MHZ

8.02

2500 MHZ

9.15

3000 MHZ

10.20

VSWR

0.01GHz-3GHz

-

1.20

820MHZ-960MHz

1.0

1.7GHz-1.9GHz

2.1GHz-2.2GHz


Competitive Advantage:

  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Over 18 years of experience on coaxial cable, we have been in business partnership with multi-national cable companies since 1994.
