Smooth Copper Tube RF Coaxial Cable 1/2 Inches RF Feeder Cable For Communication
Smooth Copper Tube RF Coaxial Cable 1/2 Inches RF Feeder Cable For Communication
Smooth Copper Tube RF Coaxial Cable 1/2 Inches RF Feeder Cable For Communication
Smooth Copper Tube RF Coaxial Cable 1/2 Inches RF Feeder Cable For Communication
Smooth Copper Tube RF Coaxial Cable 1/2 Inches RF Feeder Cable For Communication
Smooth Copper Tube RF Coaxial Cable 1/2 Inches RF Feeder Cable For Communication
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE ISO9000 ISO14001 RoSH
Model Number :
RF cable 1/2 inches
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Packaging Details :

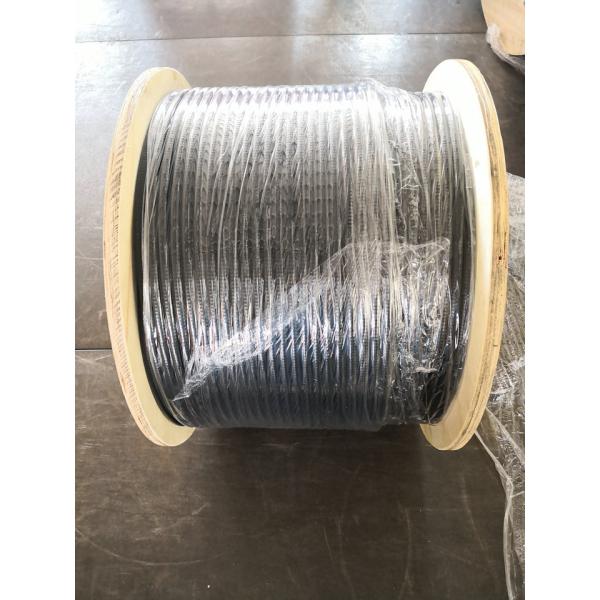

350m/500m/or according to client’s request
Delivery Time :
Within 15 days
Payment Terms :
T/T, L/C,DP
Supply Ability :
2000 KM per month
Inner conductor :
Copper clad aluminum
Outer conductor :
Corrugated copper tube
Dielectric :
high quality foamed PE
Jacket :
Linear low density PE
Length :
100m 305m 1000ft 500m
Application :
wireless telecommunication
Description

Smooth Copper Tube RF Coaxial Cable , 1/2 Inches RF Feeder Cable For Communication

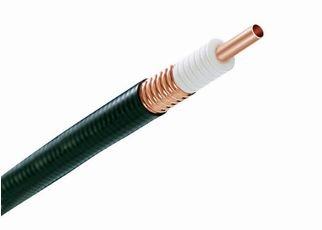

PE for outer jacket.Inner conductor is copper clad aluminum, smooth copper tube or helix copper tube is also avaliable for inner conductor as different options. insulation is high physically foaming PE. Outer conductor is corrugated copper tape.

Applications:

  • metro stations
  • wireless In-building solutions
  • tunnels
  • Wireless mobile communication
  • Microwave telecommunication
  • Military use


Specification:



construction

Testing item

Unit

Standard

Inner conductor

material

-

smooth copper tube

diameter

mm

4.80

Outer conductor

material

-

corrugated copper tape

diameter

mm

13.80

jacket

PE or halogan free

mm

15.80

mechanical performance

single bending radius

mm

70

repeated bending radius

mm

125

electrical performance

inner conductor resistance

Ω/km

≤1.48

outer conductor resistance

≤1.0

Capacitance

pF/M

76

Characteristic impedance

Ω

50+/-1

Velocity

%

88

Attenuation
20℃(max)

100MHZ

dB/100m

2.17

200MHZ

3.10

300 MHZ

3.83

450 MHZ

4.75

800 MHZ

6.46

900 MHZ

6.87

1000 MHZ

7.28

1500 MHZ

9.09

1800 MHZ

10.10

2000 MHZ

10.70

2500 MHZ

12.10

3000 MHZ

13.40

VSWR

0.01GHz-3GHz

-

1.20

820MHZ-960MHz

1.0

1.7GHz-1.9GHz

2.1GHz-2.2GHz


Competitive Advantage:

  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Over 18 years of experience on coaxial cable, we have been in business partnership with multi-national cable companies since 1994.Smooth Copper Tube RF Coaxial Cable 1/2 Inches RF Feeder Cable For Communication
