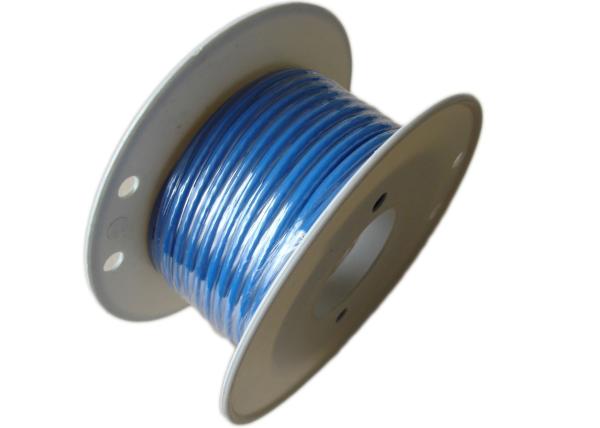

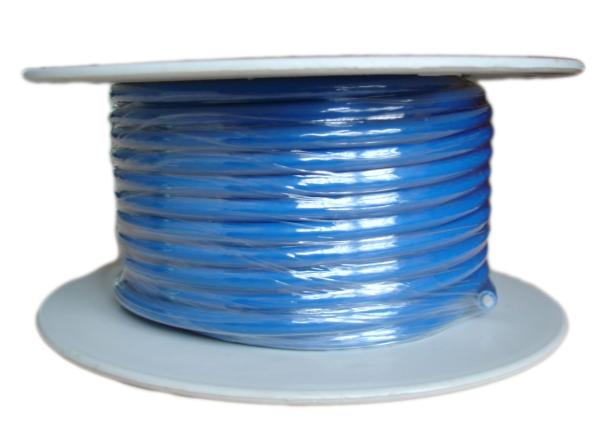

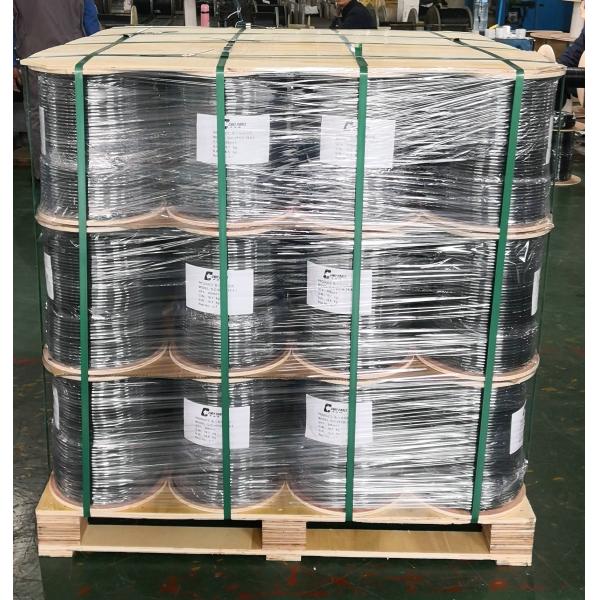

18AWG RG6 Cable, Europe standard 75 ohm Coaxial Cable WITH PVC Jacket FOR CATV, MATV

Product description:

Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 60% braid, PVC jacket.

Center conductor:

18 AWG copper clad steel

Nominal diameter:1.02±0.05mm

Insulation:

Gas expanded polyethylene

Nominal diameter over dielectric: 4.57±0.10mShield:

1^st foil : Al-Mylar

The first braid shield: AL-Mg alloy wire

Construction: 16/4/0.157

Coverage area(%): ≧60%

The second foil: N/A

The second braid shield: N/A

Construction: N/A

Coverage area (%): N/A

Outer jacket: PVC

Outer jacket thickness: 0.76mm

Overall nominal dimension:6.9±0.5mm

Outer jacket color: per customer’s request.

Messenger: N/A

Mechanical characteristics:

Operating temperature range: -20 ^oC to +75 ^oC

Min. bend radius (install): 8 x O.D.

Outer jacket tensile strength: ≧13.8MPa

Outer jacket elongation: ≧100%

Electrical characteristics:

Nominal mutual capacitance @ 1 KHz: 53.1 pF/m

Nominal velocity of propagation: 82%

Max. conductor DC resistance: 102Ω/km(@20 ^oC

SRL(5-1000MHz): 20dB

Characteristic impedance: 75±3.0Ω

Attenuation@ 68^OF(20^oC):

Applications:

RG6 cable is used as drop cable for CATV (community antenna television) and MATV (master antenna television) distribution.

Competitive Advantage:

• RG6 cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
• RG6 cable is of low cost, and it is easy to install as well.
• Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.

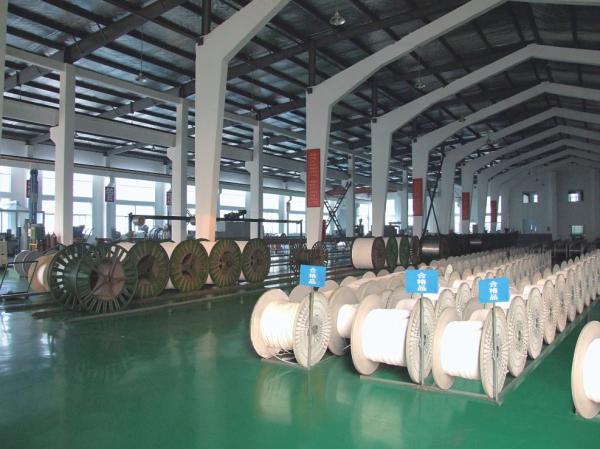

• Libo cable has a stable workforce and engineering team, the RG6 cable is with short lead-time and stable high quality.
• Libo cable is equipped with a Provincial-level Research and Development Center.
