Aluminum Braiding Wire RG11 Coaxial Cable ROSH Standard 75 ohm Drop Cable for MATV CCTV
Aluminum Braiding Wire RG11 Coaxial Cable ROSH Standard 75 ohm Drop Cable for MATV CCTV
Aluminum Braiding Wire RG11 Coaxial Cable ROSH Standard 75 ohm Drop Cable for MATV CCTV
Aluminum Braiding Wire RG11 Coaxial Cable ROSH Standard 75 ohm Drop Cable for MATV CCTV
Aluminum Braiding Wire RG11 Coaxial Cable ROSH Standard 75 ohm Drop Cable for MATV CCTV
Aluminum Braiding Wire RG11 Coaxial Cable ROSH Standard 75 ohm Drop Cable for MATV CCTV
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
Model Number :
RG11 with flame retardant PVC jacket
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Packaging Details :
100m/200m/305m/1000ft or according to client’s request
Delivery Time :
Within 10 days
Payment Terms :
T/T, L/C,DP
Supply Ability :
12,000KM per month
Inner conductor :
Copper Clade Steel
Shielding :
Standard shield
Braiding coverage :
60%
Jacket :
Flame Retardant PVC
Length :
500FT or 1000FT as per customer's requirements
Description

Aluminum Braiding Wire RG11 Coaxial Cable ROSH Standard 75 ohm RG11 Drop Cable for MATV CCTV

Quick details:

  • High quality CCS inner conductor
  • Virgin grade PE insulation
  • 60% braiding coverage
  • Flame retardant PVC jacket
  • Good electrical performance
  • User's label design service is available

Product description:

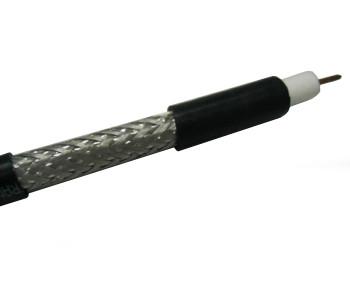

Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 60% braiding, with flame retardant PVC jacket.

Center conductor:

14 AWG copper clad steel

Nominal diameter: 0.064 inches (1.63mm)

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 0.280 inches (7.11mm)

Shield:

1st shield: laminated aluminum tape bonded to the dielectric.

Nominal diameter over tape: 0.287inches (7.29mm)

2nd shield: 0.15m aluminum braiding wire, 60% coverage.

Flame retardant PVC jacket

Nominal diameter over jacket: 0.40inches 10.16mm)

Nominal jacket thickness: 0.042inches (1.07mm)

Electrical properties:

Impedance: 75±3 ohms

Velocity of propagation: 85% nominal

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100ft. (MAX.)

dB/100 meters(MAX.)

5MHZ

0.38

1.25

55MHZ

0.96

3.15

83MHZ

1.18

3.87

187MHZ

1.75

5.74

211MHZ

1.90

6.23

250MHZ

2.05

6.72

300MHZ

2.25

7.38

350MHZ

2.42

7.94

400MHZ

2.60

8.53

450MHZ

2.75

9.02

500MHZ

2.90

9.51

550MHZ

3.04

9.97

600MHZ

3.18

10.43

750MHZ

3.65

11.97

865MHZ

3.98

13.05

1000MHZ

4.35

14.27

Applications:

RG11 cable is for CATV (community antenna television), and MATV (master antenna television) distribution.


Competitive Advantage:

  • Outstanding anti-interference effectiveness and excellent transmission reliabilities.
  • Low cost and it is easy to install.
  • Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  • Libo cable has a stable workforce and engineering team, production procedures and testing meet with ISO9000 and ISO14000 standard.
