RG7 Coaxial Cable UL PVC Jacket 75 ohm Coaxial Cable For Satellite System
RG7 Coaxial Cable UL PVC Jacket 75 ohm Coaxial Cable For Satellite System
RG7 Coaxial Cable UL PVC Jacket 75 ohm Coaxial Cable For Satellite System
RG7 Coaxial Cable UL PVC Jacket 75 ohm Coaxial Cable For Satellite System
RG7 Coaxial Cable UL PVC Jacket 75 ohm Coaxial Cable For Satellite System
RG7 Coaxial Cable UL PVC Jacket 75 ohm Coaxial Cable For Satellite System
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
Model Number :
RG7 cable
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Packaging Details :
100m/200m/305m/1000ft or according to client’s request
Delivery Time :
Within 10 days
Payment Terms :
T/T, L/C,DP
Supply Ability :
12,000KM per month
Description

RG7 Coaxial Cable UL PVC Jacket 75 ohm Coaxial Cable For Satellite System

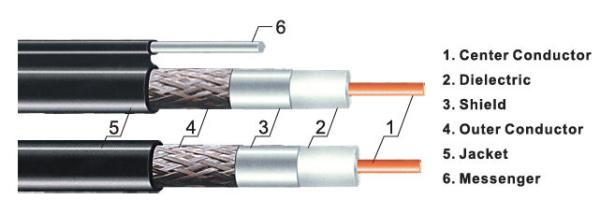

Center conductor:

nominal diameter: 1.3mm±0.01

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 6.0mm

Shield:

1st shield: bonded aluminum tape.

2nd shield: 0.12 aluminum braid wire, 6ends x16 carry.

Maximum ovality: 0.013" (0.33)

Product description:

21% conductivity copper clad steel (21%CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 0.12 x 96 braid, UL PVC jacket.

PVC Jacket:

Nominal diameter over jacket: 8.3mm

Messenger version: 1.8mm zinc coated (galvanized) carbon steel wire.

Electrical properties:

Impedance : 75±3 ohms

SRL: 5-3000MHZ≧20dB, 300-1000MHZ≧18dB

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100 meters(MAX.)

5

1.54

55

4.10

211

7.74

250

8.40

300

9.25

330

9.72

350

10.01

400

10.73

450

11.35

500

12.04

550

12.63

600

13.28

750

14.99

1000

17.45

Applications:

RG7 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.


Competitive Advantage:

  • RG7 cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
  • RG7 cable is of low cost, and it is easy to install as well.
  • Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  • Libo cable has a stable workforce and engineering team, normal lead-time of 40’FCL RG7 cable is about 7 days.
  • Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
Product tags

rg6 catv satellite coaxial cable

,

rg6 tri shield coaxial cable

,

radiating coaxial cable
