UL Standard RG59 Dual Coaxial Cable 75 Ohm RG Coaxial Cable For CATV CCTV System, RG59 Coaxial Cable
UL Standard RG59 Dual Coaxial Cable 75 Ohm RG Coaxial Cable For CATV CCTV System, RG59 Coaxial Cable
UL Standard RG59 Dual Coaxial Cable 75 Ohm RG Coaxial Cable For CATV CCTV System, RG59 Coaxial Cable
UL Standard RG59 Dual Coaxial Cable 75 Ohm RG Coaxial Cable For CATV CCTV System, RG59 Coaxial Cable
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
Model Number :
RG59 dual coaxial cable
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Packaging Details :
100/200m/305/1000FT or according to client’s request
Delivery Time :
Within 10 days
Payment Terms :
T/T, L/C
Supply Ability :
12,000KM per month
Description

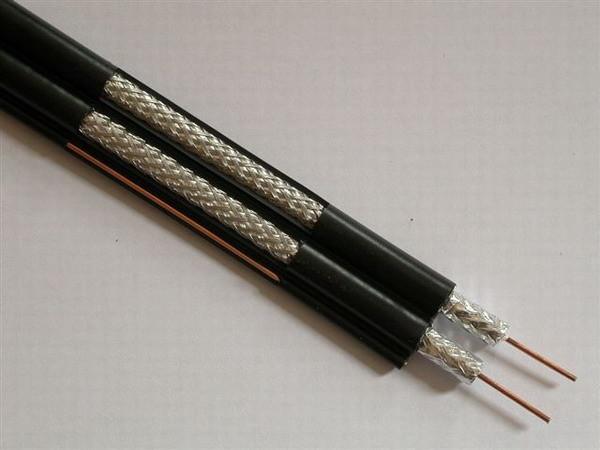

UL Standard RG59 Dual Coaxial Cable 75 Ohm RG59 Coaxial Cable For CATV CCTV System


Applications:

RG59 dual coaxial cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

Description & Specifications:

Construction of

RG59 dual coaxial cable

Testing item

Unit

Standard

Solid copper inner conductor

mm

0.81±0.01

Dielectric

3.66±0.08

1st shield, Tape

Material

-

Bonded aluminum foil

Thickness

mm

0.042±0.008

Width

mm

17±0.3

2nd shield, Braid

Material

-

Alloy wire

Diameter

mm

0.12±0.01

Ends

EA

4

Carrier

EA

16

Pitch

mm

36

Electrical properties

Coverage

%

55%

Outer jacket

PVC or PE

mm

6.1+6.1+web

Withstanding voltage

-

AC 1000V/min

Capacitance

nF/KM

52±3

Characteristic impedance(10MZ)

Ω

75±3

VSWR(5.75-864MHZ)

1.2dB

Attenuation

20℃(max)

5

dB/100m

2.82

55

6.73

211

12.47

250

13.45

350

15.75

450

17.72

500

18.70

600

20.43

750

22.87

865

24.67

1000

26.64

1450

32.41

1800

38.72

2200

42.78

Competitive Advantage:

  • RG59 dual coaxial cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
  • RG59 dual coaxial cable is of low cost, and it is easy to install as well.
  • Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  • Libo cable has a stable workforce and engineering team, normal lead-time for 40’ FCL is around 10 days.
  • Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM service as well as ODM service.
