Tinned Copper Wire RG8 Coaxial Cable , LowLoss RG8 50 Ohm Cable for CCTV
Tinned Copper Wire RG8 Coaxial Cable , LowLoss RG8 50 Ohm Cable for CCTV
Tinned Copper Wire RG8 Coaxial Cable , LowLoss RG8 50 Ohm Cable for CCTV
Tinned Copper Wire RG8 Coaxial Cable , LowLoss RG8 50 Ohm Cable for CCTV
Tinned Copper Wire RG8 Coaxial Cable , LowLoss RG8 50 Ohm Cable for CCTV
Tinned Copper Wire RG8 Coaxial Cable , LowLoss RG8 50 Ohm Cable for CCTV
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
Model Number :
RG8 coaxial cable
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Packaging Details :
100/200m/305/1000FT or according to client’s request
Delivery Time :
Within 2 weeks
Payment Terms :
T/T, L/C,DP
Supply Ability :
10,000KM per month
Description

Tinned Copper Wire RG8 Coaxial Cable , Low Loss RG8 50 Ohm Cable for CCTV

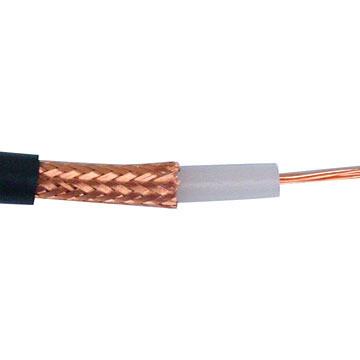

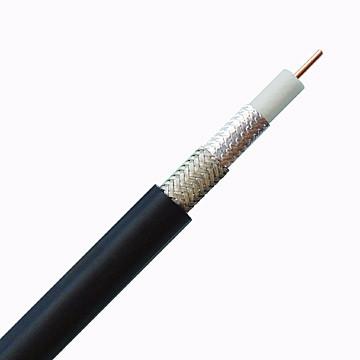

RG8 coaxial cable, solid copper or copper clad aluminum as inner conductor, Dielectric core is insulating grade virgin polyethylene, tinned copper wire for braiding material, and PVC jacket.

Applications

  • Transmission of data signals in applications such as antenna feed cables or Ethernet backbones
  • CCTV installations, Control Video-cameras and Video-security in public and private places, for supervisory of buildings, enclosed spaces and open outdoor areas and any other Video frequency application of an RG8 C/U MIL standards.
  • Suitable for Broadcast application and other equipment in: Laboratories, Supermarkets, Airports, Hospitals, Big Areas, Sport facilities etc.
  • Industrial/instrumentation and control, computer cable, medical, RF


Specifications:


construction






Testing item

Unit

Standard

Inner conductor

material

-

solid copper or CCA

diameter

mm

2.74

Dielectric

material

-

foamed PE

diameter

mm

7.24

shield, Braid

Material

-

Tinned copper wire

Coverage

%

35%-75%

Electrical properties

jacket

PVC

mm

10.24

Nominal velocity of propagation

%

85

Capacitance

pF/M

81

Characteristic impedance

Ω

50 +/-2

SRL

dB

20

Attenuation
20℃(max)

10MHZ

1.64

50MHZ

dB/100m

3.28

100MHZ

4.59

200MHZ

5.90

400MHZ

8.52

700MHZ

11.80

900MHZ

13.44

1000MHZ

14.43

1500 MHZ

18.03

1800 MHZ

20.00

2000 MHZ

21.31

2500 MHZ

24.59

3000 MHZ

27.21


Competitive Advantage:

  • RG8 has lower signal loss than smaller diameter cable such as RG 174
  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
