Low Loss 200 Coaxial Cable with PVC Jacket , Flexible Braided 50 Ohm Cable for WLL GPS
Low Loss 200 Coaxial Cable with PVC Jacket , Flexible Braided 50 Ohm Cable for WLL GPS
Low Loss 200 Coaxial Cable with PVC Jacket , Flexible Braided 50 Ohm Cable for WLL GPS
Low Loss 200 Coaxial Cable with PVC Jacket , Flexible Braided 50 Ohm Cable for WLL GPS
Low Loss 200 Coaxial Cable with PVC Jacket , Flexible Braided 50 Ohm Cable for WLL GPS
Low Loss 200 Coaxial Cable with PVC Jacket , Flexible Braided 50 Ohm Cable for WLL GPS
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
Model Number :
LMR 200 coaxial cable
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Packaging Details :
100/200m/305/1000FT or according to client’s request
Delivery Time :
Within 2 weeks
Payment Terms :
T/T, L/C,DP
Supply Ability :
12,000KM per month
Description

Low Loss 200 Coaxial Cable with PVC Jacket , Flexible Braided 50 Ohm Cable for WLL GPS

Description:

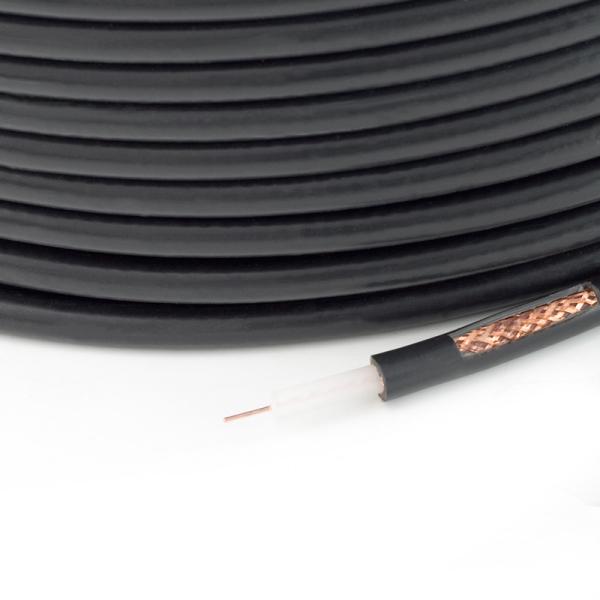

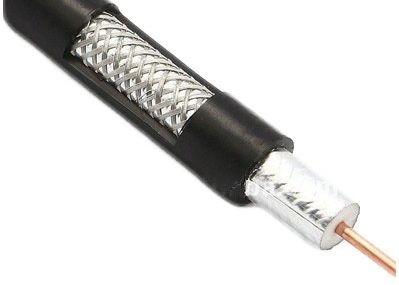

600 flexible low loss coaxial cable uses solid bare copper or high quality CCA as inner conductor. Dielectric core is insulating grade virgin polyethlene, tinned CCA braiding wire and aluminum PET tape as shield, Out side jacket is high quality PE or PVC.

Description & Specifications:

Description

Material

inches

mm

Inner Conductor

Solid BC or CCA

0.044

(1.12)

Dielectric

Foam PE

0.116

(2.95)

Outer Conductor

Aluminum Tape

0.121

(3.07)

Overall Braid

Tinned CU or tinned CCA or as per request

0.144

(3.66)

Jacket

PVC or PE

0.195

(4.95)

Performance Property

Units

US

(metric)

Bend Radius: repeated

in. (mm)

2

(50.8)

Tensile Strength

lb (kg)

40

(48)

Performance Property

0F

 oC

Installation Temperature Range

-40/+185

-40/+85

Storage Temperature Range

-94/+185

-70/+85

Operating Temperature Range

-40/+185

-40/+85

Performance property

units

US

metric

Velocity of Propagation

%

84

Impedance

ohms

50

Capacitance

pF/ft (pF/m)

24.5

(80.3)

Shielding Effectiveness

dB

>90

DC Resistance

Inner Conductor

ohms/1000ft (/km)

5.36

(17.6)

Outer Conductor

ohms/1000ft (/km)

4.9

(16.1)

Voltage Withstand

Volts DC

1000

Frequency(MHz)

30

50

150

220

450

900

1500

1800

2000

Attenuation dB/100 ft

1.8

2.3

4.0

4.8

7.0

9.9

12.9

14.2

15.0

Attenuation dB/100 m

5.8

7.5

13.1

15.9

22.8

32.6

42.4

46.6

49.3

Applications:

LMR cable is a good solution for…

  1. VLF, AM and FM radio broadcast systems.
  2. VLF, AM and FM radio broadcast systems.
  3. Replacement of RG-8/9913 air-dielectric type cable.
  4. Jumpers for equipment room and antenna connection.
  5. Military data links.
  6. Application for WLL, GPS, WiMAX, SCADA, Mobile Antennas.

Competitive Advantage:

  1. Outstanding flexibility.
  2. Has the lowest loss of any flexible cable and comparable loss to semi rigid hard-line cables.
  3. Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  4. Libo cable has a stable workforce and engineering team, we offer stable quality product with short lead-time.
  5. Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
