Belden Braiding CCTV CATV Coaxial Cable Connector Types UV Stabilized Jacket
Belden Braiding CCTV CATV Coaxial Cable Connector Types UV Stabilized Jacket
Belden Braiding CCTV CATV Coaxial Cable Connector Types UV Stabilized Jacket
Belden Braiding CCTV CATV Coaxial Cable Connector Types UV Stabilized Jacket
Belden Braiding CCTV CATV Coaxial Cable Connector Types UV Stabilized Jacket
Belden Braiding CCTV CATV Coaxial Cable Connector Types UV Stabilized Jacket
Belden Braiding CCTV CATV Coaxial Cable Connector Types UV Stabilized Jacket
Belden Braiding CCTV CATV Coaxial Cable Connector Types UV Stabilized Jacket
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
Model Number :
RG59 UV stabilized jacket
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Packaging Details :
100m/200m/305m/1000ft or according to client’s request
Delivery Time :
Within 10 days
Payment Terms :
T/T, L/C
Supply Ability :
12,000KM per month
Description

Belden Braiding CCTV CATV Coaxial Cable Connector Types UV Stabilized Jacket

Shield:

1st shield: laminated aluminum tape bonded to the dielectric.

Nominal diameter over tape: 0.151inches (3.84mm)

2st shield: 34 AWG (0.12mm) aluminum braid wire, 65% coverage.

Product description:

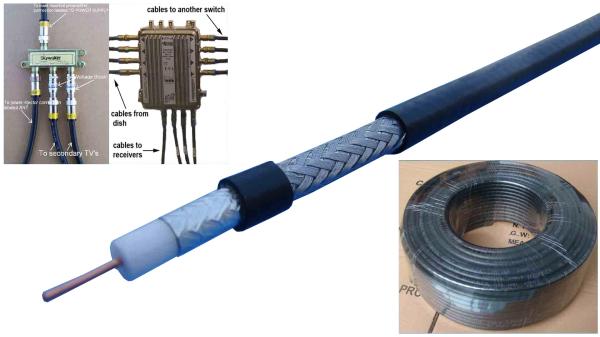

Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 65% braid, UV stabilized jacket.

Center conductor:

20AWG copper clad steel

Nominal diameter: 0.32inches (0.81mm)

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 0.144inches (3.66mm)

Flame retardant PVC Jacket:

Nominal diameter over jacket: 0.24inches (6.10mm)

Nominal jacket thickness: 0.032inches (0.81mm)

Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 85% nominal

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100ft. (MAX.)

dB/100 meters(MAX.)

5MHZ

0.86

2.82

55MHZ

2.05

6.73

83MHZ

2.45

8.04

187MHZ

3.60

11.81

211MHZ

3.80

12.47

250MHZ

4.10

13.45

300MHZ

4.45

14.60

350MHZ

4.80

15.75

400MHZ

5.10

16.73

450MHZ

5.40

17.72

500MHZ

5.70

18.70

550MHZ

5.95

19.52

600MHZ

6.20

20.34

750MHZ

6.97

22.87

865MHZ

7.52

24.67

1000MHZ

8.12

26.64

Applications:

RG59 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.


Competitive Advantage:

  • Outstanding anti-interference effectiveness and excellent transmission reliabilities.
  • low cost and easy to install.
  • Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  • Libo cable has a stable workforce and engineering team, the F5940BV cable is with short lead-time and stable high quality.
  • Libo cable is equipped with a Provincial-level Research and Development Center.
