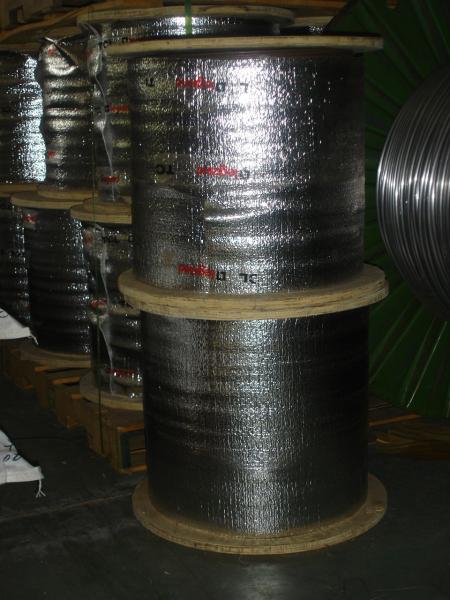

20AWG RG59 Tri-shield Coaxial Cable 75 ohm Drop Cable for CATV System

Product description:
Inner conductor is bare solid copper. Dielectric core is insulating grade virgin polyethylene. The 1^st shield is bonded laminated aluminum tape, the second shield is 95% tinned copper braid, the third shield is normal aluminum foil. Outer jacket is PVC flame retardant jacket or PE for outdoor application.

Center conductor:
20AWG copper clad steel
Nominal diameter: 0.32inches (0.81mm)

Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 0.144inches (3.66mm)

Shield:
1^st shield: laminated aluminum tape bonded to the dielectric.
Nominal diameter over tape: 0.151inches (3.84mm)
2nd shield: tinned copper braid, 0.16x7 ends x16 carry, pitch is 25mm, 95% coverage.
3^rd shield: normal aluminum foil.

PVC Jacket:
Nominal diameter over jacket: 0.24inches (6.10mm)
Nominal jacket thickness: 0.032inches(0.81mm)

Electrical properties:
Impedance : 75±3 ohms
Velocity of propagation: 85% nominal
Attenuation@ 68^OF(20^oC):

Applications:
RG59 tri-shield cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Competitive Advantage:

• RG59 tri-shield cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
• RG59 tri-shield cable is of low cost, and it is easy to install as well.
• Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
• Libo cable has a stable workforce and engineering team, normal lead-time for 40’ FCL is around 10 days.
• Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM service as well as ODM service.
