UV Stablized Jacket RG Type CATV Coaxial Cable high quality RG11 Coaxial Cable With Messenger
UV Stablized Jacket RG Type CATV Coaxial Cable high quality RG11 Coaxial Cable With Messenger
UV Stablized Jacket RG Type CATV Coaxial Cable high quality RG11 Coaxial Cable With Messenger
UV Stablized Jacket RG Type CATV Coaxial Cable high quality RG11 Coaxial Cable With Messenger
UV Stablized Jacket RG Type CATV Coaxial Cable high quality RG11 Coaxial Cable With Messenger
UV Stablized Jacket RG Type CATV Coaxial Cable high quality RG11 Coaxial Cable With Messenger
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
Model Number :
RG11 with messenger
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Packaging Details :

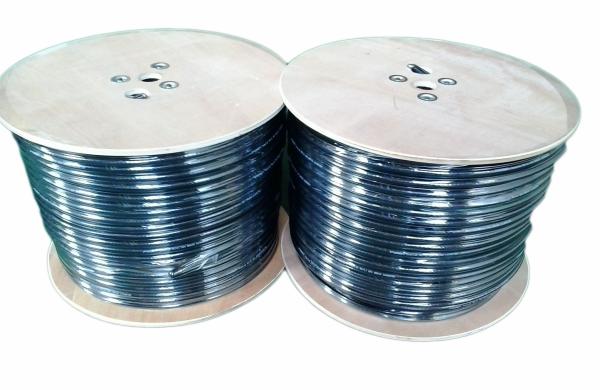

100m/200m/305m/1000ft or according to client’s request
Delivery Time :
Within 10 days
Payment Terms :
T/T, L/C
Supply Ability :
12,000KM per month
Inner conductor :
Copper clad steel
Insulation :
Foamed PE
Application :
CATV HFC cable network
Shield :
Al Foil+braiding
Length :
100m/200m/305M
Impedance :
75 ohm
Package :

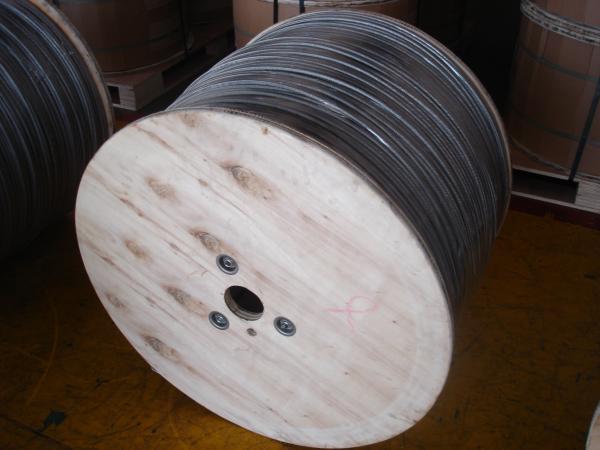

wooden drum
Description

UV Stablized Jacket RG11 Type CATV Coaxial Cable, high quality RG11 Coaxial Cable With Messenger

Shield:

1st shield: laminated aluminum tape bonded to the dielectric.

Nominal diameter over tape: 0.287inches (7.29mm)

2nd shield: 0.16mm aluminum braiding wire, 54% coverage.

Product description:

Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 54% braiding coverage, PVC jacket. Oxygen free copper inner conductor is also availiable for different option.

Center conductor:

14 AWG copper clad steel

Nominal diameter: 0.064 inches (1.63mm)

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 0.280 inches (7.11mm)

PVC Jacket:

Nominal diameter over jacket: 0.40inches 10.16mm)

Nominal jacket thickness: 0.042inches (1.07mm)

Messenger:

Galvanized steel: 1.3mm or 1.8mm

Electrical properties:

Impedance: 75±3 ohms

Velocity of propagation: 85% nominal

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100ft. (MAX.)

dB/100 meters(MAX.)

5MHZ

0.38

1.25

55MHZ

0.96

3.15

83MHZ

1.18

3.87

187MHZ

1.75

5.74

211MHZ

1.90

6.23

250MHZ

2.05

6.72

300MHZ

2.25

7.38

350MHZ

2.42

7.94

400MHZ

2.60

8.53

450MHZ

2.75

9.02

500MHZ

2.90

9.51

550MHZ

3.04

9.97

600MHZ

3.18

10.43

750MHZ

3.65

11.97

865MHZ

3.98

13.05

1000MHZ

4.35

14.27

Applications:

RG11 cable is for CATV (community antenna television), and MATV (master antenna television) distribution.


Competitive Advantage:

  • Outstanding anti-interference effectiveness and excellent transmission reliabilities.
  • Low cost and it is easy to install.
  • Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  • Libo cable has a stable workforce and engineering team, production procedures and testing meet with ISO9000 and ISO14000 standard.
