Tri-Shield CATV 75 Ohm Coaxial Cable Copper Clad Steel RG11 RG cable for Close Circuit Television cable
Tri-Shield CATV 75 Ohm Coaxial Cable Copper Clad Steel RG11 RG cable for Close Circuit Television cable
Tri-Shield CATV 75 Ohm Coaxial Cable Copper Clad Steel RG11 RG cable for Close Circuit Television cable
Tri-Shield CATV 75 Ohm Coaxial Cable Copper Clad Steel RG11 RG cable for Close Circuit Television cable
Tri-Shield CATV 75 Ohm Coaxial Cable Copper Clad Steel RG11 RG cable for Close Circuit Television cable
Tri-Shield CATV 75 Ohm Coaxial Cable Copper Clad Steel RG11 RG cable for Close Circuit Television cable
Tri-Shield CATV 75 Ohm Coaxial Cable Copper Clad Steel RG11 RG cable for Close Circuit Television cable
Tri-Shield CATV 75 Ohm Coaxial Cable Copper Clad Steel RG11 RG cable for Close Circuit Television cable
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
Model Number :
RG11 tri-shield0.16x128 90% coverage
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Packaging Details :
100m/200m/305m/1000ft or according to client’s request
Delivery Time :
Within 10 days
Payment Terms :
T/T, L/C
Supply Ability :
12,000KM per month
Inner conductor :
Copper clad steel
Insulation :
high quality foamed PE
Shileding :
Aluminum foil and alloy wire braiding
Jacket :
PVC or PE as per request

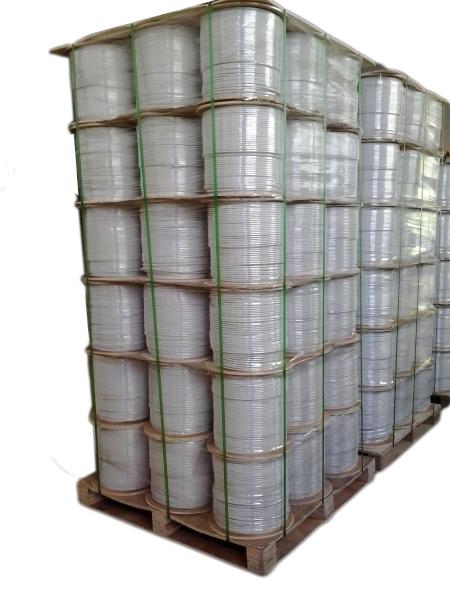

Packing :
305 meter reel or 100 meter roll
Description

Tri-Shield CATV 75 Ohm Coaxial Cable,Copper Clad Steel RG11, RG cable for Close Circuit Television cable

Center conductor:

14AWG copper clad steel

Nominal diameter: 0.06405inches(1.625mm)±0.015(0.00065)

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 0.28 inches(7.11mm)

Product description:

21% conductivity copper clad steel (21%CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 60% braiding coverage, PVC jacket.

Shield:

1st shield: bonded aluminum tape.

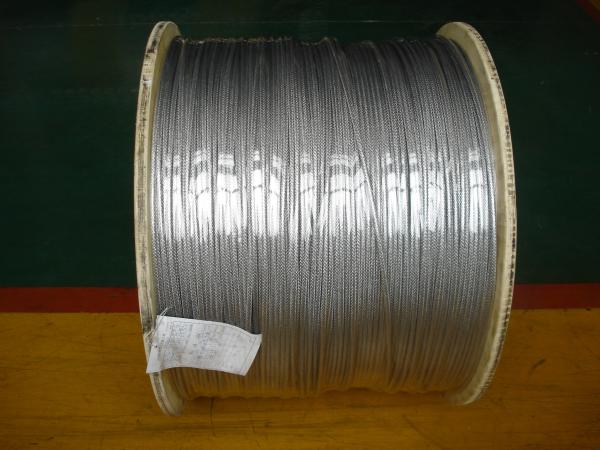

2nd shield: 0.16 aluminum braid wire, 8ends x16 carry, pitch 20mm, 90% coverage.

Maximum ovality: 0.013inches (0.33)

3rd shield: normal aluminum foil.

Screening shield: ≧80dB

PVC Jacket:

Nominal diameter over jacket:0.400inches(10.16mm)±0.010inches(0.25mm)

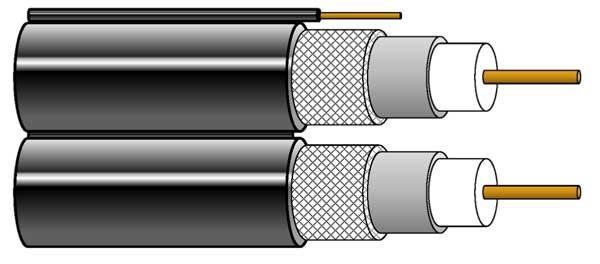

Messenger version: 1.3mm zinc coated (galvanized) carbon steel wire.

Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 82% nominal

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100 meters(MAX.)

55

3.38

250

7.22

300

7.97

450

9.91

600

11.61

750

13.09

865

14.21

1000

15.32

Applications:

RG11 tri-shield 90% coverage cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.


Competitive Advantage:

  • RG11 tri-shield 60% coverage cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
  • RG11 tri-shield cable is of low cost, and it is easy to install as well.
  • Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  • Libo cable has a stable workforce and engineering team, lead-time of 40’FCL is about 7 days.
  • Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
