Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
IS09000, ISO14000,CE, SGS
Model Number :
Electronic copper strip
MOQ :
0.1 ton
Price :
LME copper price + processing fee
Packaging Details :
In roll
Delivery Time :
1 week
Payment Terms :
T/T, L/C at sight
Supply Ability :
2000 tons per month
Description

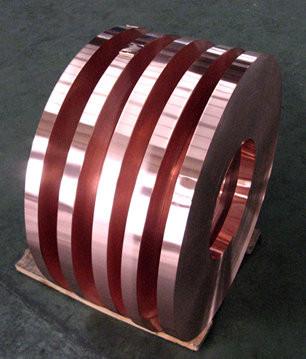

Electronic Copper Strips , Long Length Copper Tape For Power Cable


Applications:

Electronic copper strip with copper purity of 99.97%, it is suitable for following applications:

  • Copper strip for RF cable, radiating cable, leaky feeder cable, super flexible cable
  • Copper clad aluminum (magnesium) alloy wire
  • Copper Strip for Electrical and Electronic parts.
  • Transformers
  • PV ribbon


Description:

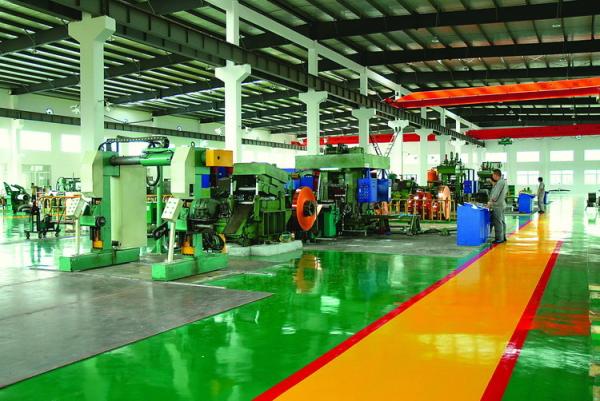

We have implemented the most advanced continuous conforming technology to produce copper strip. The oxygen-free copper we produce has better electric and heat conductivity, welding performance as well as elongation than the copper strip produced by traditional processes. The oxygen content of our copper strip is below 10PPM, and the conductivity could achieve 100% IACS

Specifications:

Standard

Thickness (mm)

Width (mm)


Length (mm)

C102

Dimension

Tolerance

＜100

＞100

0.05-0.10

±0.005

±0.10

±0.20

Can be

produced at

any length

0.10-0.30

±0.008

0.30-0.50

±0.010

0.50-0.70

±0.015

0.70-1.20

±0.030

1.20-3.00

±0.040

Temper

Resistivity(≤)Ωmm2/m

Tensile strength(≤)N/mm2

Elongation%(≥)

Vickers hardness

HV

M

0.017241

200-260

35

50-60

Y8

0.017415

200-275

32

50-65

Y4

0.017593

235-290

30

55-70

Y2

0.01777

245-315

15

85-110

Y

0.01777

≥275

3

≥100


Competitive Advantage:

  • Libo granted a National Invention Patent (Patent No. 200710071577) on super length copper strip.
  • High copper purity brings outstanding conductivity.
  • The long length of copper strip helps users to reduce production cost and to raise production efficiency.
  • Short lead-time
  • Environmentally responsible- Acid wash process is eliminated, adheres to environmental protection requirements and the principles of clean production
