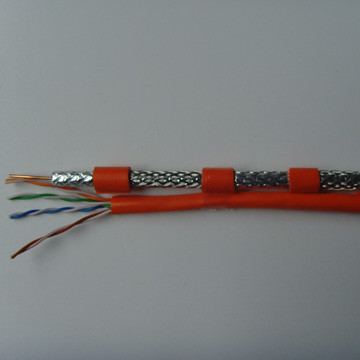

RG6BC with 26AWG UTP CAT5E Lan Cable , 75 ohm CAT5E Cable for Gigabit Ethernet
RG6BC with 26AWG UTP CAT5E Lan Cable , 75 ohm CAT5E Cable for Gigabit Ethernet
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
ISO9000,ISO14000, CE, MSHA
Model Number :
RG6+26AWG UTP CAT5E
MOQ :
1KM
Price :
Please call or e-mail to get latest price
Packaging Details :
500/1000m per drum or according to customer’s request
Delivery Time :
1 week
Payment Terms :
T/T,L/C at sight
Supply Ability :
2000KM per month
Description

RG6BC with 26AWG UTP CAT5E Lan Cable , 75 ohm CAT5E Cable for Gigabit Ethernet

Item

Description

RG6BC

1.inner conductor

18AWG(1.02mm) bare copper wire

2.insulation

Foamed PE, diameter 4.57+/-0.10mm

3.aluminum foil

100% shield, 20% overlap

4.braiding wire

16/4/0.12mm aluminum alloy wire (pitch 25mm)

UTP CAT5E

5.inner conductor

26AWG(1/0.404MM) bare copper wire

6. insulation

Colored PE, diameter 0.93mm

Insulation color: the 1st pair: white color with blue line, and blue; the 2nd pair: white color with orange line, and orange, the 3rd pair: white color with green line, and green; the 4th pair: white color with brown line, and brown.

pair

4 pairs, and conductor of each pair twisted with each other

7.rip cord

White nylon rip

Jacket of RG59 is connected with outer sheath of 1 UTP CAT5E by a web.

8. jacket

PVC, diameter of cable with RG6+UTP CAT5E 7.0+/-0.10mm)+(5.10+/-0.10), width of web is 0.3mm, 7.0mm is diameter for coaxial cable, and 5.10mm is the jacket diameter for UTP CAT5E.

Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 66% nominal

Normal capacitance (pF/m): 67

Spark test (VAC): 4000

SRL(dB)

50-300

＞22

300-1000

＞30

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100 feet(MAX.)

dB/100 meters(MAX.)

10

1.00

3.20

100

3.30

10.20

400

7.20

22.00

1000

11.50

35.00

2000

15.4

47.00

3000

19.70

60.00

Typical Packing: 305m/drum

Competitive Advantage:

  • Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  • Libo cable covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirements of ISO9000, and ISO14000.
