Grounding Cables For Railway System , Earthing Cable With aluminum Sheath
Grounding Cables For Railway System , Earthing Cable With aluminum Sheath
Grounding Cables For Railway System , Earthing Cable With aluminum Sheath
Grounding Cables For Railway System , Earthing Cable With aluminum Sheath
Grounding Cables For Railway System , Earthing Cable With aluminum Sheath
Grounding Cables For Railway System , Earthing Cable With aluminum Sheath
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
ISO9000,ISO14000, CE, MSHA
Model Number :
Railway grounding cable
MOQ :
1KM
Price :
Please call or e-mail to get latest price
Packaging Details :
500/1000m per drum or according to customer’s request
Delivery Time :
1 week
Payment Terms :
T/T,L/C at sight
Supply Ability :
2000KM per month
Description

Grounding Cables For Railway System , Earthing Cable With Lead Outer Sheath

Bare copper stranded wire as inner conductor, seamless anti-corrosion aluminum tube as outer sheath. 25mm2 , 35mm2 , 70mm2 are available.

Applications:

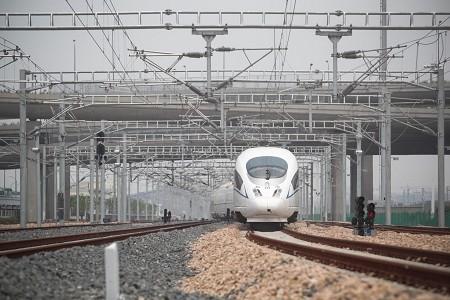

Railway grounding cable is an important part of high speed train system, railway grounding cables connect with groundings of equipment or facilities along the entire high speed railway and make it become a network, and it is the key component for railway grounding system.

Specifications:

model

Inner conductor diameter(mm)

Outer sheath

Diameter(mm)

Outer sheath

thickness (mm)

25mm2

2.13*7

8.6

1.15

35mm2

2.52*7

9.7

1.2

70mm2

2.45*9

13.1

1.3

Competitive Advantage:

Railway grounding cable with anticorrosion aluminum outer sheath has comparable conductivity as traditional grounding cable with lead outer sheath, but the anticorrosion aluminum tube outer sheath does not pollute environment, and also it will not be corroded while the cable is buried under the soil, so both the long longevity of the cable and safe operation of railway signal system are ensured. The grounding cable meets with the national requirement for environment protection and international ROSH standard
