Specifications
Brand Name :
Libo
Model Number :
RG58 50 ohm
Certification :
ROHS REACH California Proposition 65
Place of Origin :
China
MOQ :
1 meter
Price :
0.2 USD
Payment Terms :
D/A, L/C, D/P
Supply Ability :
2000000 meters
Delivery Time :
1-2 weeks
Packaging Details :

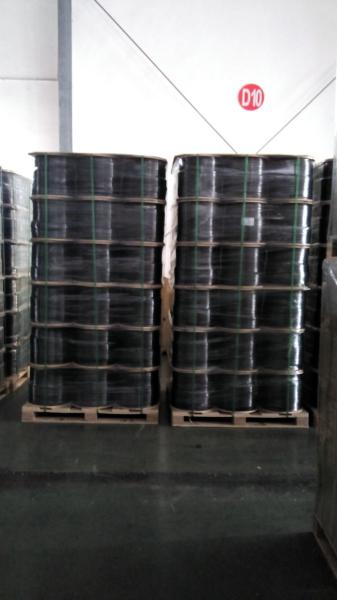

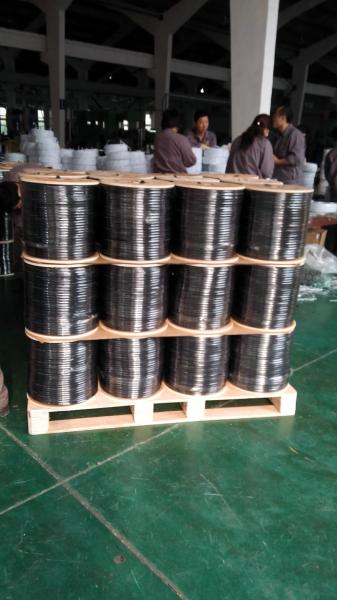

1000 feet in plywood reel or 100 meters roll
Inner conductor :
Oxygen free strand copper wire
Insulation :
Solid PE
Shileding :
Tinned copper wire or alloy wire
Braiding :
Tinned copper wire or alloy wire 90 percent coverage
Jacket :
ROHS PVC
Color :
Black or White
Packing :
Roll or 1000 feet
Description

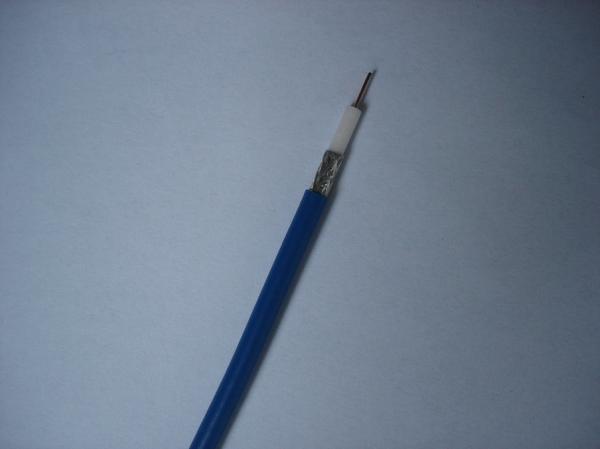

RG58 50 ohm cable Specification
Physical dimensions (Nominal)
Component Material mm
Ceter Conductor Diameter 19x0.18Tinned Copper 0.18(±0.015)
Diameter Over Dielectric Solid PE 2.95±0.13
Outer Condutor 2 16*7*0.12 mm H=20±2
Diameter Over Jacket ROHS PVC 4.85±0.15
　
Electrical Specifications
Capacitance 100+/-5 PF/m
Velcoity of Propagation %C,Nominal 66%
Impedance 50±2 ohms
Bend radius 25mm
Max. voltage 1500VMS
Frenquency 3000Mhz
Operating temp -25 to 70
ROHS Compliance Fully compliance
VSWR 1.28
Attenuation, Maximum @68℉(20℃) 　
Frequency (MHZ) Maximum
(dB/100m)
200MHZ 25.20
400MHZ 36.40
900MHZ 53.20
1800MHZ 76.00
2000MHZ 80.50
2500MHZ 96.20
3000MHZ 117.60
length per roll 319m
tolerance of length ≤0.3%

Competitive Advantage:

1. Outstanding flexibility.

2. Has the lowest loss of any flexible cable and comparable loss to semi rigid hard-line cables.

3. Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.

4. Libo cable has a stable workforce and engineering team, we offer stable quality product with short lead-time.

5. Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
