Communication RG 195 Dual Cable Transmission Data Digital 50 ohm Telecommunication
Communication RG 195 Dual Cable Transmission Data Digital 50 ohm Telecommunication
Communication RG 195 Dual Cable Transmission Data Digital 50 ohm Telecommunication
Communication RG 195 Dual Cable Transmission Data Digital 50 ohm Telecommunication
Communication RG 195 Dual Cable Transmission Data Digital 50 ohm Telecommunication
Communication RG 195 Dual Cable Transmission Data Digital 50 ohm Telecommunication
Specifications
Brand Name :
Libo
Model Number :
RG195
Certification :
ROHS REACH California Proposition 65 ISO 9000 ISO140001
Place of Origin :
China
MOQ :
1 meter
Price :
USD
Payment Terms :
D/P, L/C, T/T, D/P
Supply Ability :
20000000 meters
Delivery Time :
1-2 weeks
Packaging Details :
Roll or reel or different packing is available upon request
Inner conductor :
Oxygen free strand copper wire
Shielding :
Standard Shield
Jacket :
ROHS PVC or TPE REACH
Packing :
305 meters per reel or as per customer's requirement
Color :
Black or White or Blue or Yellow
Braiding :
Tinned copper wire 90% braiding coverage
Description

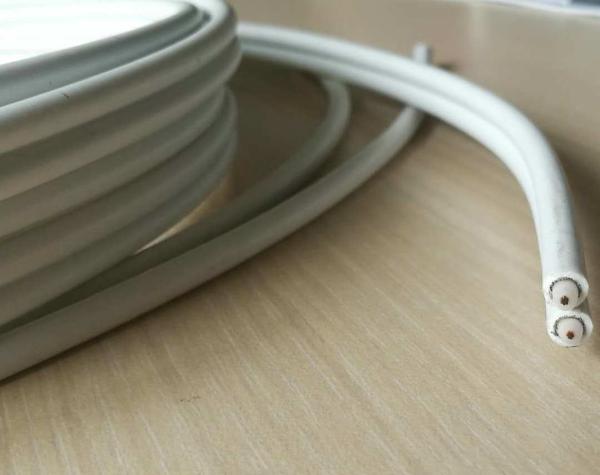

RG195 50 ohm cable specification
Dimension
Item Material mm
Inner conductor Strand bare copper wire 0.32mm x 7
Insulation Foamed PE 2.79±0.1
Outer conductor 1 Aluminum tape NONE
Outer conductor 2 Tinned copper wire 90% braiding coverage
Jacket material TPE 4.90±0.10
Jacket color White
Cable layout Dual cable in parallel layout
Electrical performance
Impedance 50±3 Ohms
Veloctiy 74%
Capacitance 89pF/m Nominal
Insulation resistance 5000(MΩ.km)
Jacket Voltage stand 3000(Vrms)
Operation tempreature -25 to 70
Mini. Bend raidus 25mm
Attenuation Max. @(20℃) 　
Frequency (MHZ) Max.
(dB/100m)
150 16.79
450 29.44
900 41.98
1500 54.86
1800 60.38
2000 63.83
25000 73.2
Length tolerance ±0.3%

Communication RG 195 Dual Cable Transmission Data Digital 50 ohm Telecommunication
