CATV Coaxial RG6 Dual Cable PVC Jacket 75 ohm Video Cable Copper Inner Conductor
CATV Coaxial RG6 Dual Cable PVC Jacket 75 ohm Video Cable Copper Inner Conductor
CATV Coaxial RG6 Dual Cable PVC Jacket 75 ohm Video Cable Copper Inner Conductor
CATV Coaxial RG6 Dual Cable PVC Jacket 75 ohm Video Cable Copper Inner Conductor
CATV Coaxial RG6 Dual Cable PVC Jacket 75 ohm Video Cable Copper Inner Conductor
CATV Coaxial RG6 Dual Cable PVC Jacket 75 ohm Video Cable Copper Inner Conductor
Specifications
Brand Name :
Libo
Model Number :
RG6 dual coaxial cable
Certification :
CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
Place of Origin :
China
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Payment Terms :
T/T, L/C
Supply Ability :
12,000KM per month
Delivery Time :
Within 10 days

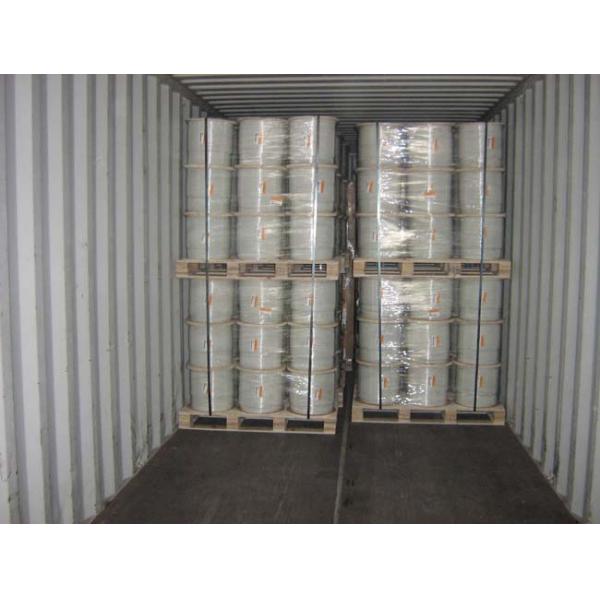

Packaging Details :
3000/4800m/5000/or according to client’s request
Description

Dual RG6 Coaxial Cable for CATV and MATV, PVC Jacket 75 ohm Video Cable CATV Coaxial

Dual RG6 coaxial cable meets with international standard, and quality approved by laboratory as per ANSI/SCTE 03 2008 for Structure Return Loss specification.

construction

Testing item

Unit

Standard

Inner conductor

mm

1.02±0.01

Dielectric

4.57±0.08

1st shield, Tape

Material

-

Bonded aluminum foil

Thickness

mm

0.042±0.008

Width

mm

17±0.3

2nd shield, Braid

Material

-

Alloy wire

Diameter

mm

0.152±0.01

Ends

EA

5

Carrier

EA

16

Pitch

mm

42

Electrical properties

Coverage

%

65%

Outer jacket

PVC or PE

mm

6.8+6.8+web

Withstanding voltage

-

AC 1000V/min

Capacitance

nF/KM

53.2 Nominal

Characteristic impedance(10MZ)

Ω

75±3

VSWR(5.75-864MHZ)

1.2dB

Attenuation

20℃(max)

10MHz(10%)

50-1000MHz(5%)

10MHZ

dB/100m

2.80

50MHZ

4.96

150MHZ

8.11

250MHZ

10.39

350MHZ

12.30

450MHZ

14.39

750MHZ

19.43

864MHZ

20.48

Physical properties

Inner conductor tensile strength

Kgf/mm2

50.0

Inner conductor elongation

%

1.0 (Min)


Applications:

RG6 cable is used as drop cable for CATV (community antenna television) and MATV (master antenna television) distribution.

Competitive Advantage:

  • RG6 cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
  • RG6 cable is of low cost, and it is easy to install as well.
  • Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  • Libo cable has a stable workforce and engineering team, normal lead-time of 40’FCL is about 7 days.
  • Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.CATV Coaxial RG6 Dual Cable PVC Jacket 75 ohm Video Cable Copper Inner Conductor
