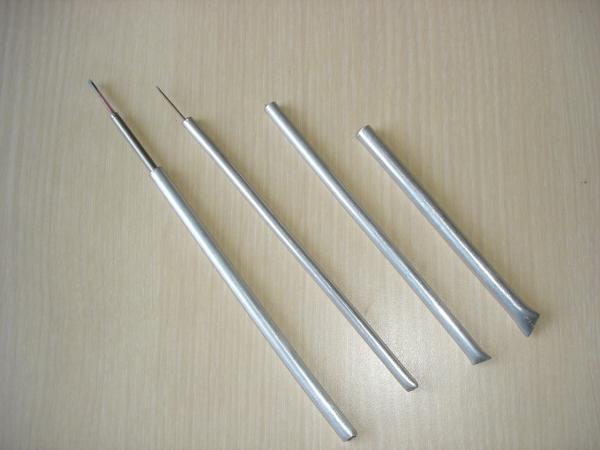

Electrical OPGW Optical Ground Wire Fibre Grounding Wire with 110KV 220KV
Electrical OPGW Optical Ground Wire Fibre Grounding Wire with 110KV 220KV
Electrical OPGW Optical Ground Wire Fibre Grounding Wire with 110KV 220KV
Electrical OPGW Optical Ground Wire Fibre Grounding Wire with 110KV 220KV
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administration of radio, Film, & TV, P.R. China
Model Number :
OPGW-2S 124B1
MOQ :
10KV
Price :
Call or e-mail to get the latest price
Packaging Details :
200m/300m/400m/ or according to client’s request
Delivery Time :
2-3 weeks
Payment Terms :
T/T, L/C,DP
Supply Ability :
5,000KM per month
Description

Electrical OPGW Optical Ground Wire Fibre Grounding Wire with 110KV 220KV

Description:

OPGW cable is the short for optical ground wire; it is the optical fiber composite overhead ground wire.

OPGW cable has one or more optical fibers inside, and contains stainless steel tube, or seamless aluminum tube.

Applications

  • It is applied on high voltage power transmission lines like 110KV, 220KV, and/or 500KV.
  • It can replace traditional static, shield , earth wires on overhead power transmission lines
  • It Shields the high voltage conductors from lightning.
  • It provides telecommunications path and the third party communications
  • It provides a path for the transmission of voice, video or data signals.

Specifications:

　 　 Material Fiber cores Material Fiber cores Diameter
structure Optical fiber G.652 24 G.652 0 　 　
Center 20.3% AS wire 1 　 　 Wire Diameter 2.40mm
1st layer 20.3% AS wire 5 AA wire 0 Wire Diameter 2.40mm
　 Stainless steel tube 1 fiber cores 24 Tube Diameter 2.40mm
2nd layer 40% AS wire 10 AA wire 0 Wire Diameter 3.0mm
Specification As per Standard of IEC, IEEE, DL/T 832-2003, and GB/T 7424.4-2003.
Strand: Anti- Corrosion paste is filled between center conductor and each layers. 　
the twisted direction of the outer lyaer is rightwards (Z-stranding) 　 　
Cable diameter: 　 　 　 　 13.20mm
Cable weight: 　 　 　 　 　 536kg/KM
Cross section area: 　 　 　 　 97.8mm2
　 AS area 　 97.83mm2 　 　 　
　 AA area 　 0.00mm2 　 　 　
Nominal Tensile strength ( RTS) 　 　 　 　 80.2kN
E- Modulus 　 　 　 　 　 123.7kN/mm2
Coefficient of thermal expansion 　 　 　 　 14.6x10-6/℃
Max. working stress(MAT)(40% RTS) 　 　 　 328.0N/mm2
Each day stress (EDS)(16%-25 RTS) 　 　 　 131.2 ～205N/mm2
Limited special stress (70% RTS) 　 　 　 　 574.0N/mm2
D.C resistance 　 　 　 　 　 0.52Ω/km
Short circuit current (0.5s,40℃-200℃) 　 　 11.7kA
Short circuit capacity 12t 　 　 　 　 68.2kA2S
Min. bending radius Installation 　 　 264mm
　 　 Operation 　 　 　 198mm
Raito of Draw weight 　 　 　 　 15.3km
Temperature range Installation temperature 　 　 　 -10℃～+50℃
Delivery and operation temperature 　 　 　

-40℃～+80℃

Competitive Advantage:

  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
