Anti- Corrosion OPGW Optical Ground Wire multimode Fiber Composite Overhead
Anti- Corrosion OPGW Optical Ground Wire multimode Fiber Composite Overhead
Anti- Corrosion OPGW Optical Ground Wire multimode Fiber Composite Overhead
Anti- Corrosion OPGW Optical Ground Wire multimode Fiber Composite Overhead
Anti- Corrosion OPGW Optical Ground Wire multimode Fiber Composite Overhead
Anti- Corrosion OPGW Optical Ground Wire multimode Fiber Composite Overhead
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administration of radio, Film, & TV, P.R. China
Model Number :
OPGW-24B1-62
MOQ :
10kv
Price :
Call or e-mail to get the latest price
Packaging Details :
200m/300m/400m/ or according to client’s request
Delivery Time :
2-3 weeks
Payment Terms :
T/T, L/C,DP
Supply Ability :
5000kv per month
Description

Anti- Corrosion OPGW Optical Ground Wire multimode Fiber Composite Overhead

Description:

OPGW cable is the short for optical ground wire; it is the optical fiber composite overhead ground wire.

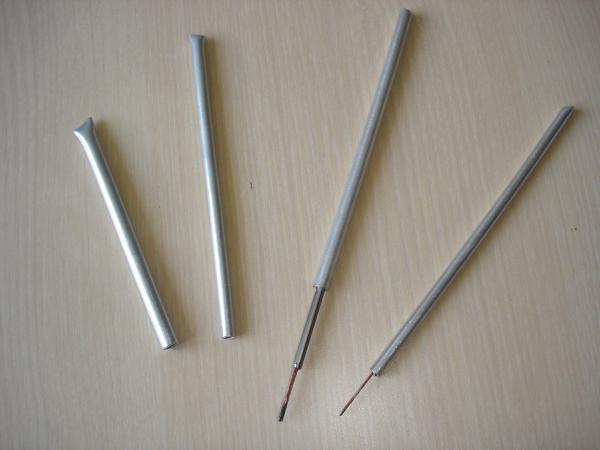

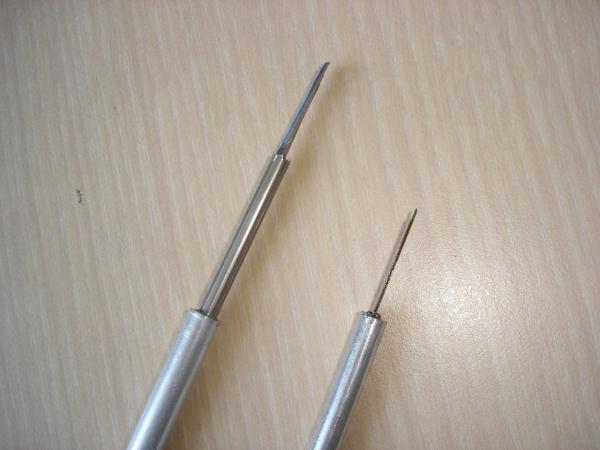

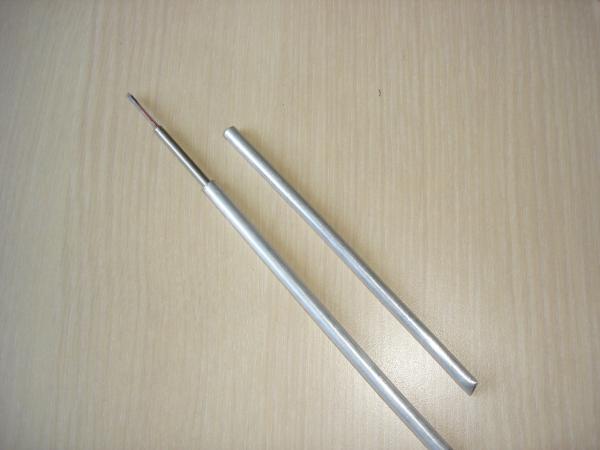

OPGW cable has one or more optical fibers inside, and contains stainless steel tube, or seamless aluminum tube.

Applications

  • It is applied on high voltage power transmission lines like 110KV, 220KV, and/or 500KV.
  • It can replace traditional static, shield , earth wires on overhead power transmission lines
  • It Shields the high voltage conductors from lightning.
  • It provides telecommunications path and the third party communications
  • It provides a path for the transmission of voice, video or data signals.

Specifications:

　 　 Description Fiber cores Description Fiber cores Diameter
structure Optical fiber G.652 24 G.652 0 　 　
Center SUS 1 Fiber cores 24 Tube Diameter 3.60mm
1st layer 27% AS wire 6 AA wire 0 Wire Diameter 3.60mm
　
Specification As per Standard of IEC, IEEE, DL/T 832-2003, and GB/T 7424.4-2003.
Strand: Anti- Corrosion paste is filled between center conductor and each layers.
the twisted direction of the outer lyaer is rightwards (Z-stranding)
Cable diameter: 　 　 　 　 10.80mm
Cable weight: 　 　 　 　 391kg/KM
Cross section area: 　 　 　 　 61mm2
　 AS area 　 61.07mm2 　 　 　
　 AA area 　 0.00mm2 　 　 　
Nominal Tensile strength ( RTS) 　 　 　 62.7kN
E- Modulus 　 　 　 　 　 140.0kN/mm2
Coefficency of thermal expansion 　 　 　 13.4x10-6/℃
Max.working stress(MAT)(40% RTS) 　 　 　 410.40N/mm2
Each day stress (EDS)(16%-25 RTS) 　 　 164.2 ～256.5N/mm2
Limited special stress (70% RTS) 　 　 　 718.2N/mm2
D.C resistance 　 　 　 　 1.060Ω/km
Short circuit current (0.25s,20℃-200℃) 　 　 10.1kA
Short circuit capacity 12t 　 　 　 　 25.5kA2S
Min.bending radius Installation 　 　 270mm
　 　 Operation 　 　 　 162mm
Raito of Draw weight 　 　 　 　 16.4km
Tempreature range Installation tempreature 　 　 　 -10℃～+50℃
Delivery and operation tempreature 　 　 -40℃～+80℃

Competitive Advantage:

  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
