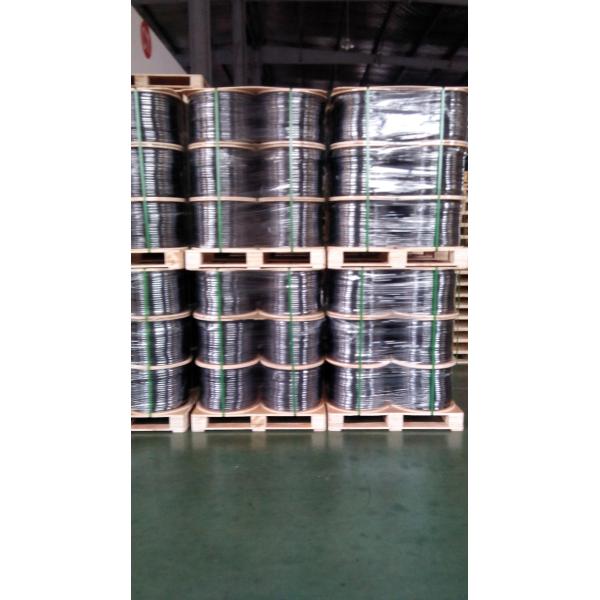

CATV 75 ohm Tri-Shield RG11 RG11 90BVM Coaxial Cable with PEJacket

Quick details:

• High quality CCS inner conductor
• Virgin grade PE insulation
• 60% braiding coverage
• PE Jacket
• Good electrical performance
• User's label design service is available

Product description:

21% conductivity copper clad steel (21%CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 90% braid, PE jacket.

Center conductor:

14AWG copper clad steel

Nominal diameter: 0.06405inches(1.625mm)±0.015(0.00065)

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 0.28 inches(7.11mm)

Shield:

1^st shield: bonded aluminum tape.

2nd shield: 0.16 aluminum braid wire, 8ends x16 carry, pitch 20mm, 90% coverage.

Maximum ovality: 0.013inches (0.33)

3^rd shield: normal aluminum foil.

Screening shield: ≧80dB

PE Jacket:

Nominal diameter over jacket:0.400inches(10.16mm)±0.010inches(0.25mm)

Messenger version: 1.3mm zinc coated (galvanized) carbon steel wire.

Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 82% nominal

Attenuation@ 68^OF(20^oC):

Applications:

RG11 tri-shield 90% coverage cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

Competitive Advantage:

• RG11 tri-shield 60% coverage cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
• RG11 tri-shield cable is of low cost, and it is easy to install as well.
• Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
• Libo cable has a stable workforce and engineering team, lead-time of 40’FCL is about 7 days.
• Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
•
