Low Loss Bow Type Drop Cables For Access Network Gjxfh Gjxh Optical Cable
Low Loss Bow Type Drop Cables For Access Network Gjxfh Gjxh Optical Cable
Low Loss Bow Type Drop Cables For Access Network Gjxfh Gjxh Optical Cable
Low Loss Bow Type Drop Cables For Access Network Gjxfh Gjxh Optical Cable
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
Model Number :
GJXFH GJXH
MOQ :
1KM
Price :
Call or e-mail to get the latest price
Packaging Details :
1km per reel or as per customer's request
Delivery Time :
7-10 days
Payment Terms :
T/T, L/C
Supply Ability :
500000km per month
Description

Bow Type Drop Cables For Access Network Gjxfh Gjxh Optical Cable

Quick details

  • GJXFH
  • Low Smoke and halogen free Jacket
  • Self-supporting messenger version is available
  • Low weight
  • Good electrical performance

Product Description

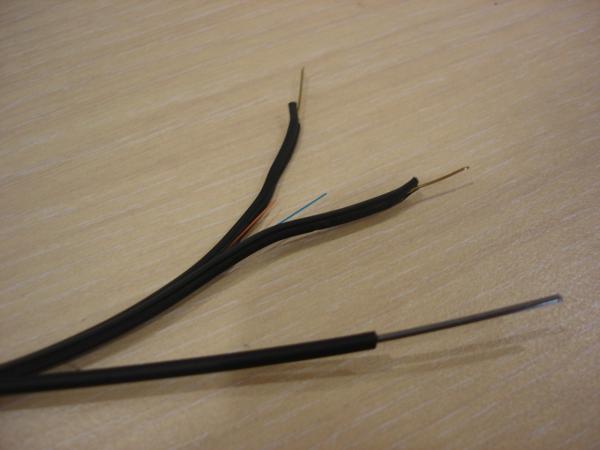

Bow Type Drop Cables For Access Network Gjxfh Gjxh Optical Cable has a black low smoke halogen free jacket, the optical cable is produced between two parallel fiber refinforced plastics (FRP) on each side. Self supporting cable is avaliable.

Application

· it is used as Access network fiber to the tall building, CBD (Center Business District)

· it is used to replace RG cable to support the Internet , CATV , telephone and more network service.

Specification:

Technical Parameters:
Cable Count Out sheath Diameter Weight Minimum allowable Tensile Strength (N) minimum allowable Crush Load (N/100mm) Minimum Bending Radius (MM) Storage temperature
(MM) (KG) short term long term short term long term short term long term (°C)
1 4.0*7.3 48.00 1000 300 1000 300 20D 10D -40+60
2 4.0*7.3 48.00 1000 300 1000 300 20D 10D -40+60
4 4.0*7.3 48.00 1000 300 1000 300 20D 10D -40+60
6 4.0*7.3 48.00 1000 300 1000 300 20D 10D -40+60
12 4.0*7.3 48.00 1000 300 1000 300 20D 10D -40+60

Handing
Minimum Bend Radius,With Load 15cm
Minimum Bend Radius,With No Load 7.5cn
Minimum Bend Radius,Storage Coils 15cm
Minimum Rated Cable Load (MRCL) 1335N
Minimum Long Term Load 667N
Temperature Installation:-30°C to 60°C
Operation: -40°C to 70°C
Storage:-40°C to 75°C
Aerial Span Information
Storm Loading Region 1% Midspan Sag at Installation 3% Midspan Sag at Installation
Max Span Installation Tension Max Span Installation Tension
Heavy 140ft 42lbf. 175ft. 18lbf.
Medium 260ft 78lbf. 350ft. 35lbf.
Light 290ft 87lbf. 400ft. 40lbf.

Standard Fiber Colour Identification
No.of fiber 1 2 3 4 5 6
Color of fiber Blue Orange Green Brown Slate White
No.of fiber 7 8 9 10 11 12
Color of fiber Red Black Yellow Violet Pink Aqua

Company Advantage:

  • Professional cable manufacturer since 1994.
  • Over 20 years of OEM ODM production experiences.
  • User's label OEM ODM service is avaliable.
  • Quick lead - time.
  • Small minimum order quantity.
