Flame Retardant Jacket RG6 Drop Cables Quad-Shield Rg6 Coaxial Cable for CCTV

Quick Details:

• Flame Retardant RG6 Coaxial Cable
• 18AWG CCS
• Virgin grade polyethylene insulation
• Bonded aluminum foil
• Tri-shield
• Flame retardant PVC jacket

Applications:

RG6 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

Center conductor:

18AWG copper clad steel

Nominal diameter: 0.0403"(1.02mm)±0.01(0.0004)

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 0.18"(4.57mm)

Product description:

21% conductivity copper clad steel (21%CCS).Dielectric core is insulating grade virgin polyethylene. The 1^st shield is bonded laminated aluminum tape, the 2^nd shield is 0.12x64 braid, the third shield is normal aluminum foil, an then the 4^th shield is 0.12x 48 braid. The jacket is flame retardant PVC.

Shield:

1^st shield: bonded aluminum tape.

2nd shield: 0.12 aluminum alloy braid wire, 4ends x16 carry.

Maximum ovality: 0.013" (0.33)

3^rd shield: normal aluminum foil.

4^th shield: 0.12 aluminum alloy braid wire, 4 ends x 16 carry.

Flame retardant jacket:

Nominal diameter over jacket: 7.10mm±0.2mm

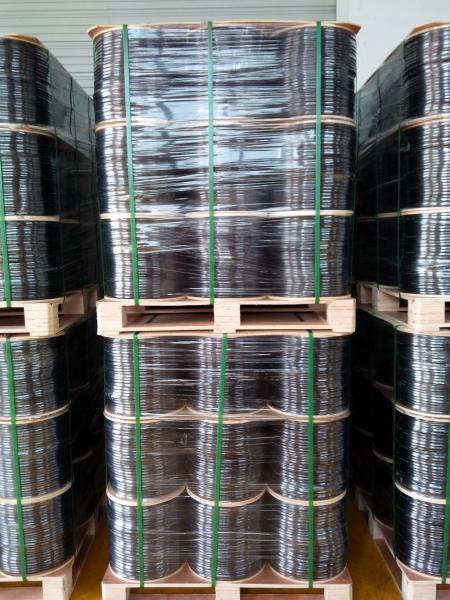

Packing:

We provide buyer's label OEM/ODM design service.

Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 82% nominal

Attenuation@ 68^OF(20^oC):

Competitive Advantage:

• RG6 cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
• RG6 is of low cost, and it is easy to install as well.
• Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
• Libo cable has a stable workforce and engineering team, normal lead-time of 40’FCL quad-shield RG 6 cable is about 7 days.
• Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
