Bare Copper Wire Braiding Leaky Antenna Feeder Cable for Coal Mine Communication
Bare Copper Wire Braiding Leaky Antenna Feeder Cable for Coal Mine Communication
Bare Copper Wire Braiding Leaky Antenna Feeder Cable for Coal Mine Communication
Bare Copper Wire Braiding Leaky Antenna Feeder Cable for Coal Mine Communication
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000, ISO14001,RoSH, MSHA
Model Number :
SLYWV-75-10 leaky feeder cable
MOQ :
0.1km
Price :
Call or e-mail to get the latest price

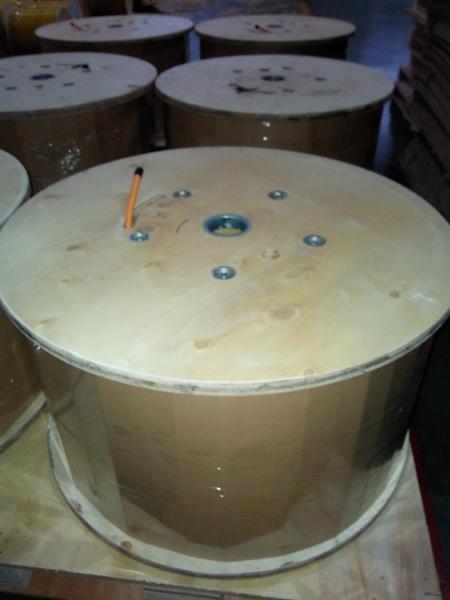

Packaging Details :
350m/500m/1000m or according to client’s request
Delivery Time :
5 days
Payment Terms :
T/T, L/C,DP
Supply Ability :
1000 KM per month
Description

Flame Retardant Jacket Leaky Feeder Cable SLYWV 75 - 10 Coal Mine Communication

Quick Details:

  • MSHA Certificate
  • Solid Oxygen Free Copper Inner Conductor
  • Bare Copper Wire Braiding
  • Low Smoke Halogen Free Jacket or Fire Retardant Jacket
  • VHF Leaky Feeder Cable
  • 75 Ohm Leaky Feeder Cable

Description:

MSHA certified leaky feeder cable, Meet IEC1196 and EN50117.

The leaky feeder cable has a radiation pattern of 360 degrees around the cable and can be strapped directly to a centenary cable, water or air pipe. The standard length is 350m or 500m with a yellow outer jacket.

Applications:

  • Mines underground communication system
  • metro stations
  • tunnels
  • ships
  • In-building wireless systems.
  • perimeter detection

Specification:

NO. Items Technical Requirements
1 Inner conductor CU 2.31±0.03mm
2 Dielectric FPE 9.50±0.20mm
3 Outer conductor CU 16*0.60mm
4 Inner jacket PE 13.0±0.30mm
5 Outer jacket PVC 15.5±0.50mm
6 impedance 75±3Ω
7 Frequency 5-500 MHz
8 DC resistance inner conductor ≤4.1Ω/km
9 DC resistance outer conductor ≤3.9Ω/km
10 Capacitance Pf/m 51±2
11 Insulation resistance ＞10.4Ω/km
12 MIN. bend radius 150mm
13 Coupling loss(50%), dB 65±10
14 Operating temperature -40 to +70 centigrade

15

Attenuation@20℃

≤dB/100m

 85 MHz ≤3.4dB
150 MHz ≤4.2dB
160 MHz ≤4.8dB
450 MHz ≤6.1dB

Competitive Advantage:

  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
  • Over 10 years of experience on leaky feeder cable, big market share in oversea leaky feeder cable industry.
