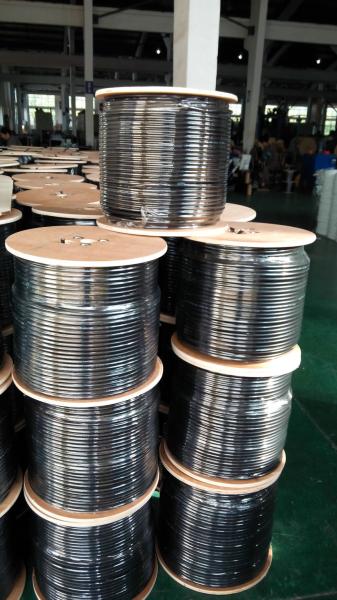

RG6 Quad Shield Coaxial Cable CATV ROSH Standard Cable 34AWG Braiding Wire​

Quick Details:

• RG6 Coaxial Cable
•18AWG CCS
• Polyethylene Insulation
• 95% braiding coverage
• Quad shield
• ROHS PVC jacket

Product description:

21% conductivity copper clad steel (21%CCS).Dielectric core is insulating grade virgin polyethylene. The 1^st shield is bonded laminated aluminum tape, the 2^nd shield is 95% coverage braiding, and the 3^rd shield is normal aluminum foil, the fourth shield is 34AWG 0.16mm alloy wire braiding with 95% coverage.The Jacket is PVC or PE for outdoor applications.

Applications:

RG6 tri-shield 90% coverage cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

Center conductor:

18AWG copper clad steel

Nominal diameter: 0.0403”(1.02mm)±0.01(0.0004)

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 0.18”(4.57mm)

Shield:

Shield 1: Bonded aluminum laminated shielding tape

Shield 2: 0.16 aluminum braid wire,95% coverage

Maximum ovality: 0.013" (0.33)

Shield 3: Unbonded Aluminum laminated shielding tape

Screening shield: ≧85dB

Shield 4: 0.16 aluminum braid wire,95% coverage

PVC Jacket:

Nominal diameter over jacket: 7.54mm± 0.2mm

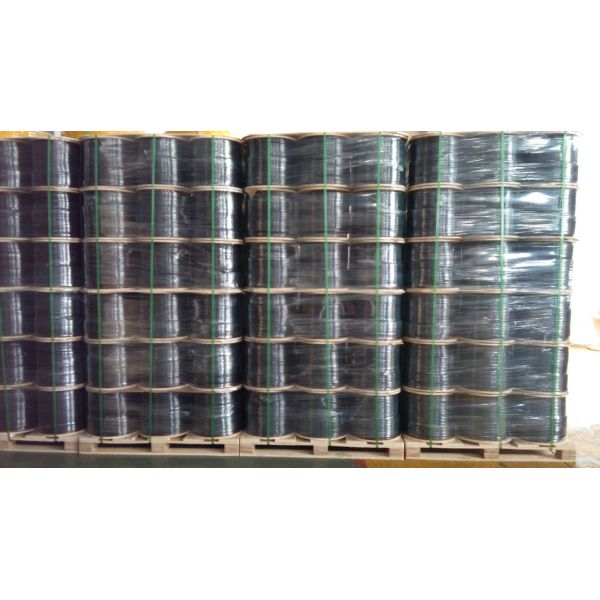

Packing:

Buyer's labels and cartons OEM/ODM desgin service is available.

Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 82% nominal

Attenuation@ 68^OF(20^oC):

Competitive Advantage:

• RG6 quad-shield cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
• RG6 quad cable is of low cost, and it is easy to install as well.
• Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
• Libo cable has a stable workforce and engineering team, lead-time of 20’FCL is 5 days.
• Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
