Industrial Thin Copper Strips / Copper Sheet Metal For PV Ribbon
Industrial Thin Copper Strips / Copper Sheet Metal For PV Ribbon
Industrial Thin Copper Strips / Copper Sheet Metal For PV Ribbon
Industrial Thin Copper Strips / Copper Sheet Metal For PV Ribbon
Industrial Thin Copper Strips / Copper Sheet Metal For PV Ribbon
Industrial Thin Copper Strips / Copper Sheet Metal For PV Ribbon
Specifications
Brand Name :
Libo
Model Number :
Copper strip for PV ribbon
Certification :
IS09000, ISO14000,CE, SGS
Place of Origin :
China
MOQ :
0.1 ton
Price :
LME copper price + processing fee
Payment Terms :
T/T, L/C at sight
Supply Ability :
2000 tons per month
Delivery Time :
1 week
Packaging Details :
In roll
Description

Industrial Thin Copper Strips / Copper Sheet Metal For PV Ribbon

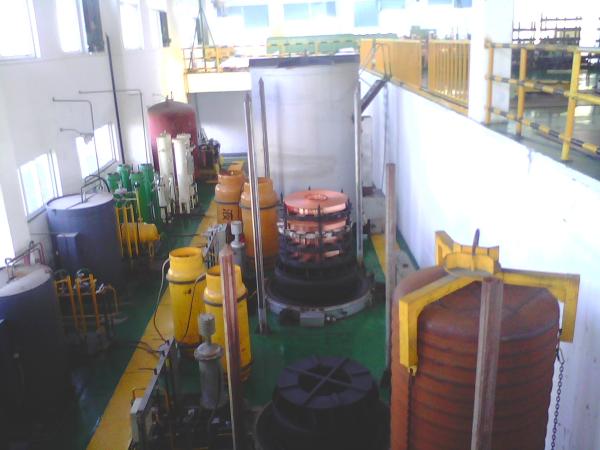

Libo Copper Strip uses the most advanced continuous conforming technology to produce oxygen free copper strip, for which we received a national patent. Our products feature large roll diameters, long lengths, and superior surface and conductivity. Our minimum thickness is .05 mm, and our maximum width is 250 mm. Oxygen-free copper strip from Libo features high conductivity, excellent welding properties, better elongation, and superior deep-punching characteristics. Our annual production capacity is about 10,000 tons.

Applications:

Industries of electricity, electronics and new energy.

Specifications:

Standard

Thickness (mm)

Width (mm)

Length (mm)

C102

Dimension

Tolerance

＜100

＞100

0.05-0.10

±0.005

±0.10

±0.20

Can be

produced at

any length

0.10-0.30

±0.008

0.30-0.50

±0.010

0.50-0.70

±0.015

0.70-1.20

±0.030

1.20-3.00

±0.040

Temper

Resistivity(≤)Ωmm2/m

Tensile strength(≤)N/mm2

Elongation%(≥)

Vickers hardness

HV

M

0.017241

200-260

35

50-60

Y8

0.017415

200-275

32

50-65

Y4

0.017593

235-290

30

55-70

Y2

0.01777

245-315

15

85-110

Y

0.01777

≥275

3

≥100

Competitive Advantage:

  • Libo granted a National Invention Patent (Patent No. 200710071577) on super length copper strip.
  • High copper purity brings outstanding conductivity.
  • The long length of copper strip helps users to reduce production cost and to raise production efficiency.
  • Short lead-time
  • Environmentally responsible- Acid wash process is eliminated, adheres to environmental protection requirements and the principles of clean production
  • Industrial Thin Copper Strips / Copper Sheet Metal For PV Ribbon
