Indoor CATV Trunk Cable Broadband Braiding Distribution RG216 Coaxial Cable 75 Ohm
Indoor CATV Trunk Cable Broadband Braiding Distribution RG216 Coaxial Cable 75 Ohm
Indoor CATV Trunk Cable Broadband Braiding Distribution RG216 Coaxial Cable 75 Ohm
Indoor CATV Trunk Cable Broadband Braiding Distribution RG216 Coaxial Cable 75 Ohm
Indoor CATV Trunk Cable Broadband Braiding Distribution RG216 Coaxial Cable 75 Ohm
Indoor CATV Trunk Cable Broadband Braiding Distribution RG216 Coaxial Cable 75 Ohm
Specifications
Brand Name :
Libo
Model Number :
RG216 cable
Certification :
CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
Place of Origin :
China
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Payment Terms :
T/T, L/C
Supply Ability :
12,000KM per month
Delivery Time :
Within 10 days
Packaging Details :

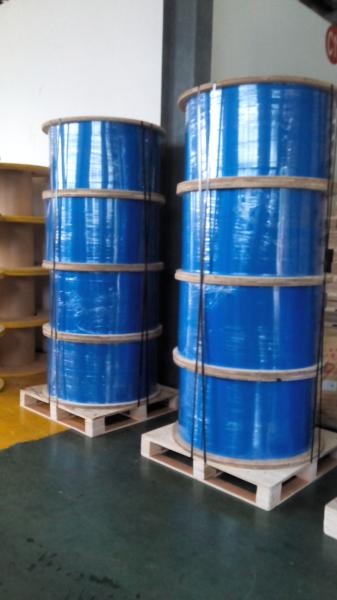

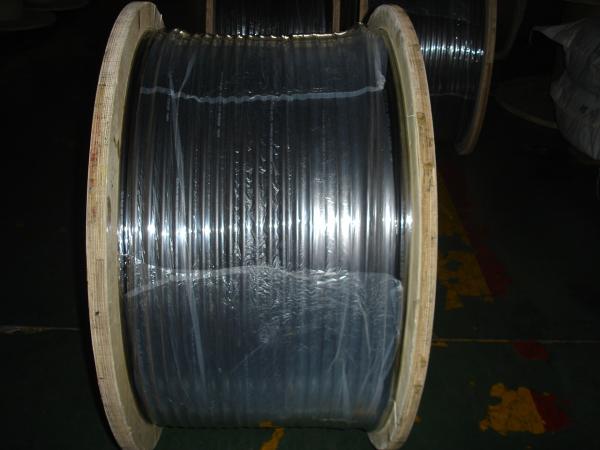

100m/200m/305m/1000ft or according to client’s request
Inner conductor :
Copper clade steel
Outer conductor :
Aluminum alloy wire braiding
Jacket :
PVC
Description

Braiding Distribution RG216 Coaxial Cable 75 Ohm Trunk Cable Broadband

Quick details:

  • Braid RG216 Coaxial Cable
  • 75 Ohm Cable
  • 7 x 0.39 bare solid copper Ø1.20mm
  • solid polyethylene
  • Without aluminum shield
  • bare copper wire braiding with 90% coverage
  • PVC jacket

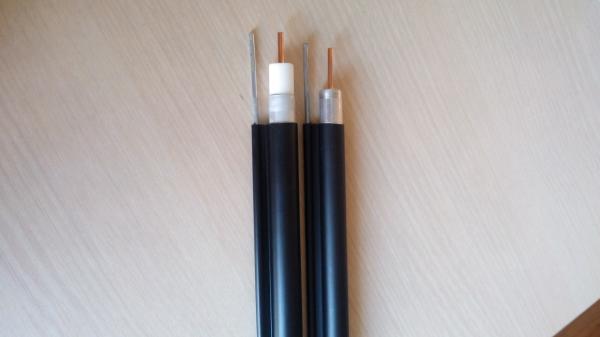

Product description:

Stranded copper wire as inner conductor, dielectric core is insulating grade virgin polyethylene. 90% Aluminum wire braid, PVC jacket.

Applications:

RG216 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

Center conductor:

Bare stranded copper wire

7 x 0.39 solid copperØ1.2mm

Dielectric:

solid polyethylene

Nominal diameter over dielectric: 7.11mm+/-0.13mm(0.28 inches)

Shield: bare copper wires with 90% coverage.

PVC Jacket:

Nominal diameter over jacket: 10.8mm+/-0.15mm (0.425 inches)

Jacket thickness: 1.05mm

Electrical properties:

Impedance: 75±3 ohms

Velocity of propagation: 66% nominal

SRL: 22dB

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100 meters(MAX.)

10

1.80

100

6.50

400

14.10

1000

25.20

2000

43.00

3000

59.00

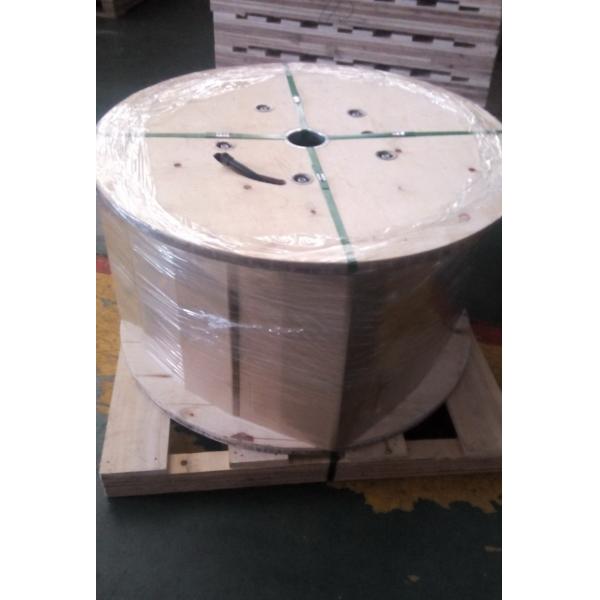

Packing:

Buyer's labels OEM/ODM design service is available.

Competitive Advantage:

  • RG216 cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
  • Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  • Libo cable has a stable workforce and engineering team, lead-time of 40’FCL is about 10 days.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.Indoor CATV Trunk Cable Broadband Braiding Distribution RG216 Coaxial Cable 75 Ohm
