Trunk Cable Aluminum Tube Feeder Distribution Cable SCTE 15 2006 Standard PE Jacket

Quick Details:

• 500 semi-finished Trunk Cable
• Seamless aluminum tube as outer conductor

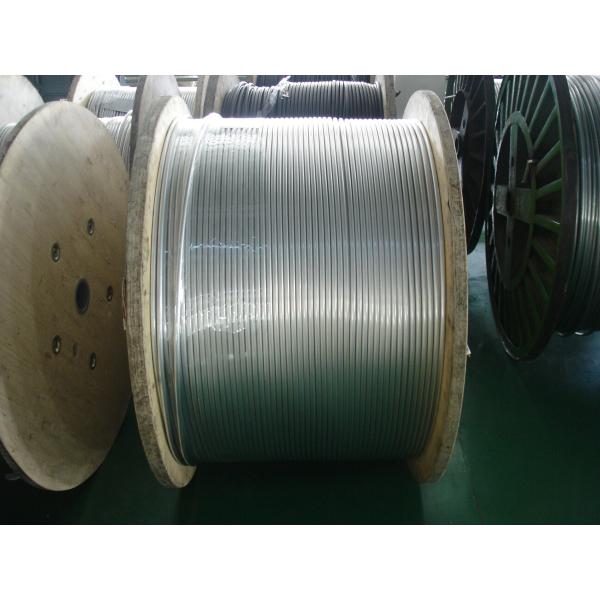

• 3KM per reel or as per customer's request
• OEM/ODM service is available

Product description:

The inner conductor is high quality copper clad aluminum (CCA), dielectric core is produced by insulating grade virgin polyethylene, it is tightly covered by solid aluminum tube. Medium density PE is used as jacket material.

Applications:

P3 500JCA trunk cable is used as main cable and distribution cable for CATV network, such as base station and equipment cabinets. It is applicable in transmission of single and duplex analog signals and as well as duplex digital signals. The trunk cable is also widely used in HFC duplex transmission network.

Mechanical performance:

Minimum bending radius: 6.0 inches/15.2cm

Maximum pulling tension: 300lbs /136kgf

Electrical characteristics:

Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)

Impedance: 75±2 ohms

Velocity of propagation: 87% nominal

Maximum D.C resistance @68^OF:

Structure Return loss: 22dB

Inner conductor: 1.35ohms/1000ft (4.43ohms/km)

Outer conductor: 0.37ohms/1000ft (1.21ohms/km)

Loop: 1.72 ohms/1000ft. (5.64 ohms/km)

Attenuation@ 68^OF(20^oC):

Packing:

Buyer's labels OEM/ODM design service is available.

Competitive Advantage:

• The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.
• Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
• Libo cable developed the world’s first conforming seamless aluminum tube trunk cable.
• Libo cable has been OEM supplier for multi-national cable companies since 1994.
•
