Semi Finished Braiding RG Cable CCS Inner Condutor 75 Ohm 4900 Meters Per Drum

Quick Details:

• RG6 Coaxial Cable
•18AWG CCS
• Polyethylene Insulation
• Bonded aluminum PET foil
• 60% braiding coverage
• Tri- shield
• PVC jacket

Product description:

21% conductivity copper clad steel (21%CCS).Dielectric core is insulating grade virgin polyethylene. The 1^st shield is bonded laminated aluminum tape, the 2^nd shield is 90% coverage braiding, and the 3^rd shield is normal aluminum foil. The Jacket is PVC or PE for outdoor applications.

Applications:

RG6 tri-shield 90% coverage cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

Center conductor:

18AWG copper clad steel

Nominal diameter: 0.0403”(1.02mm)±0.01(0.0004)

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 0.18”(4.57mm)

Shield:

1^st shield: bonded aluminum tape.

2nd shield: 0.15 aluminum braid wire, 7ends x16 carry. 90% coverage

Maximum ovality: 0.013" (0.33)

3^rd shield: normal aluminum foil.

Screening shield: ≧85dB

PVC Jacket:

Nominal diameter over jacket:0.278"(7.06mm)±0.008"(0.2mm)

Packing:

Buyer's labels and cartons OEM/ODM desgin service is available.

Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 82% nominal

Attenuation@ 68^OF(20^oC):

Competitive Advantage:

• RG6 tri-shield cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
• RG6 tri-shield cable is of low cost, and it is easy to install as well.
• Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.

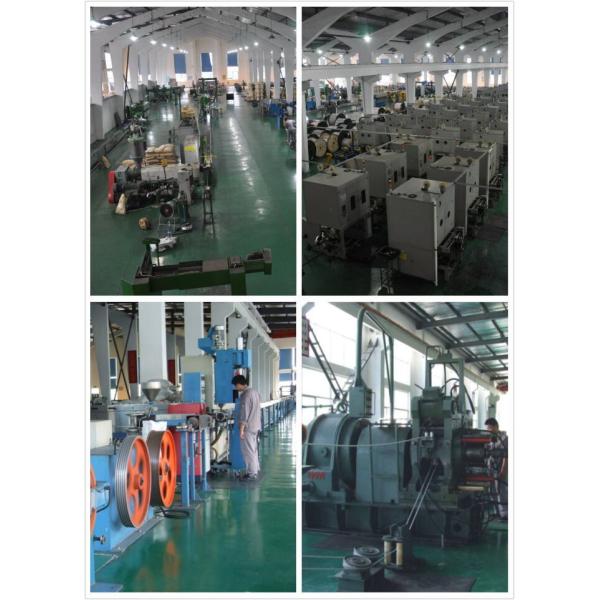

• Libo cable has a stable workforce and engineering team, lead-time of 20’FCL is 5 days.
• Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
•
