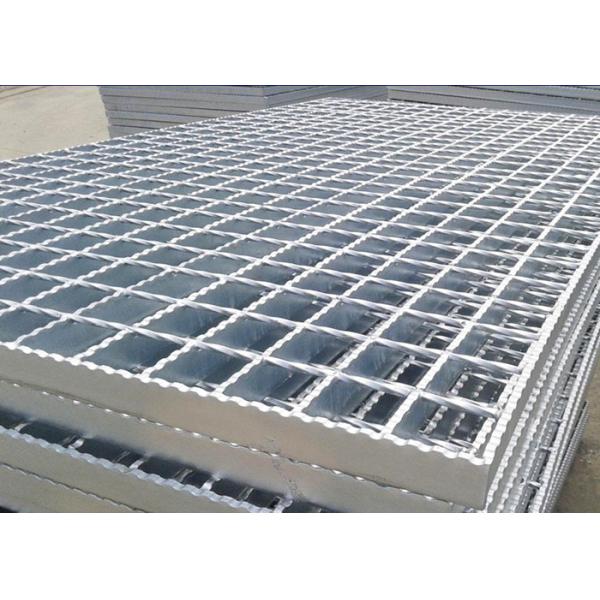

Outdoor Platform Catwalk Steel Grating 1000x1000 mm Stainless Steel 304

Hot Dip Galvanizing Of Factory Outdoor Platform Catwalk Steel Grating

Catwalk Steel Grating Introduction

Platform steel grille plate is a very wide range of steel grille plate products in recent years, this kind of grille plate is the most widely used in various fields of industry, the surface impact has the strongest resistance, especially the bar spacing of 50mm steel grille plate has a strong ability to resist lateral impact.It is mainly used in factories, workshops, mining, ports of all kinds of platforms can be selected, beautiful style, convenient installation, is a new generation of building products.

Catwalk Steel Grating Specifications

1, flat steel spacing of 30mm steel grid for the industrial field of the most widely used varieties.In the series of commonly used steel grates, it has the strongest resistance to surface impact.

2, flat steel spacing of 40mm steel grid for the most economic, the most portable varieties.In the case of minimum span, it is the most ideal choice.

3, flat steel spacing of 60mm, bar spacing of 50mm steel grid is designed for the application of mining and development of varieties, it solves the problem of mineral splashing on the surface of the plate.

Catwalk Steel Grating Construction

1, can be added in the peripheral welding kick plate (side plate), decorative plate guard plate, installation connector and other accessories.

2. Flat steel with different specifications of flat steel is used to wrap the edge, or Angle steel, channel steel, square pipe and so on.

3. Handles and hinges can be installed on the platform steel grid plate that needs to be moved or opened frequently.

4, the platform steel grid plate edge welding standard is: series 1 every five welding one;Series 2, one for every four welds;Series 3 welds one per three.The weld shall be a single fillet welding of not less than 3mm, and the weld length shall be 20mm.

Catwalk Steel Grating Application

Platform steel grid plate is suitable for alloy, building materials, power stations, boilers, shipbuilding, petrochemical, chemical and general factory rooms, municipal construction and other industries, with ventilation and light, anti-skid, strong bearing capacity, beautiful and durable, easy to clean, installation, is a new generation of building products.Can be added in the peripheral welding kick plate (side plate), decorative plate guard plate, the installation of fittings and other accessories.Flat steel with different specifications can be used to pack the edge, or Angle steel, channel steel, square pipe, etc.Handles and hinges can also be installed on steel grids that need to be moved or opened frequently.

The method of welding fixation is:

the fillet welding with the length of the weld not less than 20mm and the height not less than 3mm on the first flat steel at each corner of the steel grid plate.
When ordering mounting clips, please specify the type, quantity and material required.

The installation can be fixed by welding and clamping.
Welding fixation is suitable for permanent parts that do not need to be disassembled, such as the platform around the equipment, and the installation clip has the characteristics of not destroying the zinc layer and convenient disassembly.
Mounting clamps are suitable for all series of steel grates, which are composed of upper clamps, lower clamps and M8 bolts.
The method of fixing the installation clip is: each plate adopts at least four sets of installation clip, and it is best to install several more supports on the larger plate span.
Stainless steel mounting clips are available to meet customer requirements.

Package delivery:

Delivery when will we have a professional inspectors to check the quality of the product is unqualified, such as qualified will paste the qualified product certificate, and then fixed by shipping packaging, packaging with the steel plate on the metal tray, and then fixed with metal packing tape, finally wrapped by plastic film packaging, general each pallet packing 1-2 tons of cargo, in order to convenient for unloading and storage after the arrival of the goods. The unqualified products will be recalled by our quality inspector.

Pre-sale service:
After the customer orders, we will have professional technical personnel to contact with the customer, in order to meet the customer's technical inquiry and production schedule.

After-sales:
After the goods are shipped, we will have professional technical personnel to docking with customers, so that when the goods arrive, there will be unloading problems, storage and installation problems. Our technical personnel will reply online within 24 hours. If there is a problem, we will docking within 2 hours and help customers solve the problem within 5 hours.
