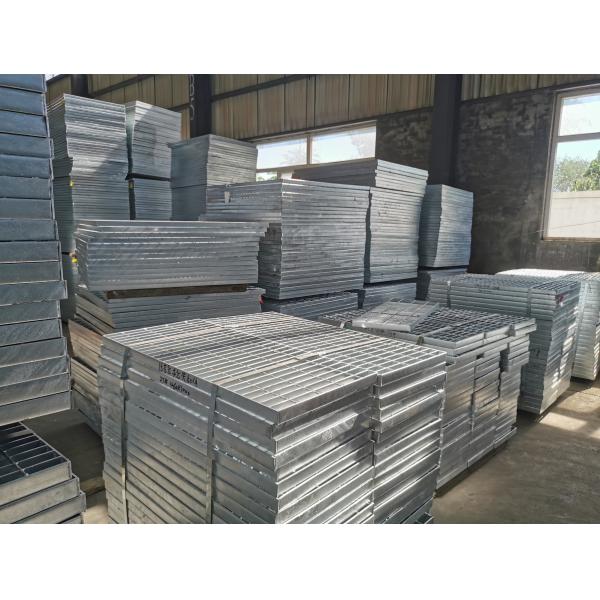

Water Permeable Stair Treads Steel Grating

Water Permeable Steel Parking Space In Parking Lot Stair Treads Steel Grating

Steel Grate Stair Treads Introduction

The steel grid plate ditch cover is used on the ground of sidewalk, driveway, courtyard or building as the cover of ditch, pipeline ditch, underground passageway, air shaft, lighting well, inspection well, etc.
The steel grid plate groove cover can also be composed of a fixed frame and a movable steel grid plate cover plate, according to the need can be matched with a fastening mechanism or anti-theft device.
G303/30/100 type is generally used as the specification of the steel grid for the cover plate;
Other models are also available.
For the steel grid plate trench cover in public places, the model with the horizontal bar spacing of 50mm should be adopted.
Adopt toothed flat steel and I type steel grates groove cover as agreed by the supply and demand parties.

Steel Grate Stair Treads Specifications

Steel Grate Stair Treads Application

1, can be added in the peripheral welding kick plate (side plate), decorative plate guard plate, installation connector and other accessories.
2. Flat steel with different specifications of flat steel is used to wrap the edge, or Angle steel, channel steel, square pipe and so on.
3. Handles and hinges can be installed on the platform steel grid plate that needs to be moved or opened frequently.
4, the edge of the welding standard: series 1 every five welding;
Series 2, one for every four welds;
Series 3 welds one per three.
The weld shall be a single fillet welding of not less than 3mm, and the weld length shall be 20mm.

Steel Grate Stair Treads Advantages

1, under the same load conditions to save steel consumption.

2, can reduce the material of supporting structure accordingly.Save money.

3, simplify the installation process, convenient disassembly, can be reused.

4, no accumulation of rain, snow and dust, free from cleaning and maintenance.

Package delivery:
Delivery when will we have a professional inspectors to check the quality of the product is unqualified, such as qualified will paste the qualified product certificate, and then fixed by shipping packaging, packaging with the steel plate on the metal tray, and then fixed with metal packing tape, finally wrapped by plastic film packaging, general each pallet packing 1-2 tons of cargo, in order to convenient for unloading and storage after the arrival of the goods. The unqualified products will be recalled by our quality inspector.

Pre-sale service:

After the customer orders, we will have professional technical personnel to contact with the customer, in order to meet the customer's technical inquiry and production schedule.

After-sales:
After the goods are shipped, we will have professional technical personnel to docking with customers, so that when the goods arrive, there will be unloading problems, storage and installation problems. Our technical personnel will reply online within 24 hours. If there is a problem, we will docking within 2 hours and help customers solve the problem within 5 hours.
