Hikvision Pravite Protocol 2.0 Magepixel Waterproof SD Card IP IR Camera CV-XIP628GW3S
Hikvision Pravite Protocol 2.0 Magepixel Waterproof SD Card IP IR Camera CV-XIP628GW3S
Hikvision Pravite Protocol 2.0 Magepixel Waterproof SD Card IP IR Camera CV-XIP628GW3S
Hikvision Pravite Protocol 2.0 Magepixel Waterproof SD Card IP IR Camera CV-XIP628GW3S
Hikvision Pravite Protocol 2.0 Magepixel Waterproof SD Card IP IR Camera CV-XIP628GW3S
Hikvision Pravite Protocol 2.0 Magepixel Waterproof SD Card IP IR Camera CV-XIP628GW3S
Specifications
Brand Name :
ICUseguranty
Model Number :
CV-XIP628GW3S
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T, Western Union, Paypal, L/C
Supply Ability :
6000/ month
Delivery Time :
5-7 working days
Packaging Details :
Retail Packaging
Style :
Bullet Camera
Sensor :
CMOS
Technology :
Infrared
Special Features :
Waterproof / Weatherproof
Type :
Digital Camera
POE :
Optional
SD Card slot :
YES
working tempreature :
-40℃ ~ 85℃
Description

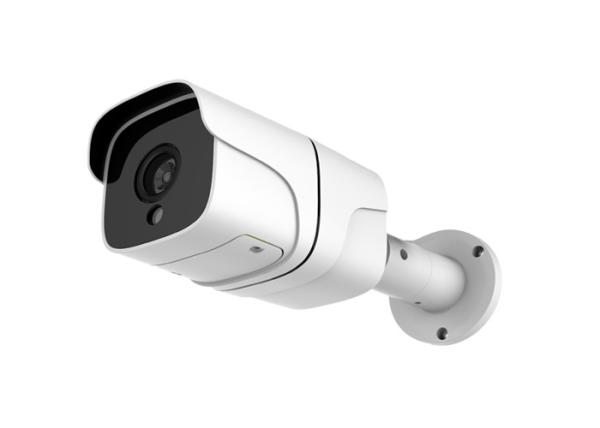

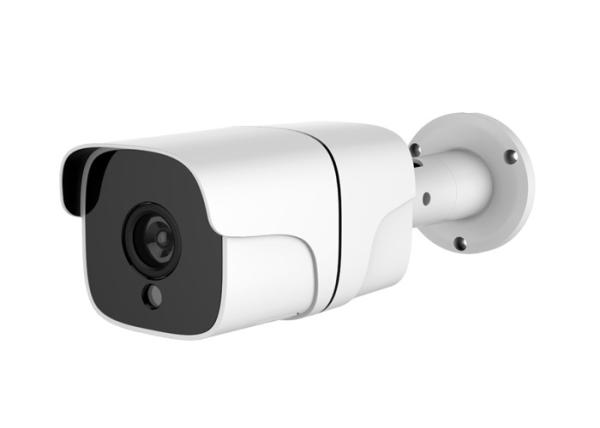

Megapixel HD IP IR bullet Camera (18 IR LED)

Model No.: CV-XIP628GW3S

Hikvision Pravite Protocol 2.0 Magepixel Waterproof SD Card IP IR Camera CV-XIP628GW3S

Main feature:

  • Professional design for HD network camera, small, beautiful and delicate, best for home security.
  • Material: aluminum alloy, innovative patented heat dissipation structure, make HD camera can works well under high temperature.
  • 2.0 megapixel, 1080P progressive scan
  • Advanced digital signal processing technology, high brightness imported SMT IR source, show the best HD video effects in both day and night environment.
  • 3.0 Megapixel HD CS lens+ IR-CUT auto switch in day and night,3.6mm,6mm fixed focus lens optional
  • 18 IR LED, effective night vision distance is 20m, excellent performance in dark environment.
  • Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.
  • ONVIF protocol, can provide the SDK.

Optional back-end products for the system:

IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.

Technical parameters:

Model: CV-XIP628GW3S
Camera Imaging sensor:

2.0MP,H.265,

Mstar316D+IMX323,1/2.9″CMOS
Scanning mode: Progressive scanning
Illumination: color 0.01Lux@F1.2,black/white:0.005Lux@F1.2, IR on 0 lux
Lens: 3 megapixel 3.6mm,6mm fixed focus CS lens
Day and night switch: IR-CUT dual optical filters auto switch in day and night
DNR: 3D-DNR
IR source: 18pcs IR Led
Effective night vision distance: 20 meters (measured value without light condition)
P2P YES
Waterproof YES
SD Card slot YES(Support 128G at most)
Standard compression Image compression: H.264
Video compression: H.265/H.264, support dual-stream, AVI format; support stream 32Kbps ~ 3.5Mpbs adjustable;support CBR/VBR
Image Max image size: 1920 x 1080
Frame rate: 1920 x 1080@ 25 fps
Function Interface protocol: HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF2.6/,Hikvision private protocol
Intelligent alarm: Motion detection, shadow alarm, network cable break, IP address conflict
POE

YES (optional),IEEE802.3at/af Standard

PoE/IN:37-57V(15.4W), DC/OUT:12V/1A(12.95W)
Lightning Protection Power, network, POE comprehensive lightning protection, in line with national standards GB/T17626.5, the international standard IEC61000-4-5.
features Support WEB configure, support for OSD, support video transmission,support mobile surveillance, support for mobile detection alarm center after the screen pop-up reminders and linkage; supports JPEG capture; provide perfect the SDK development package;
Basic parameter Power input: DC 12V±10%
Power consumption: 1W (IR off) / 9.5W (IR on) 1.1W / 9.6W (IR on)
Work environment: -40℃ ~ 85℃, humidity is less than 95% (no condensation)
