Manual varifocal zoom lens 2.8-12mm 2.0 Magepixel effective night vision distance 50m
Manual varifocal zoom lens 2.8-12mm 2.0 Magepixel effective night vision distance 50m
Specifications
Place of Origin :
China
Brand Name :
ICUseguranty
Certification :
CE,FCC,ROHS
Model Number :
CV-XIP0230HWB
MOQ :
1PCS
Packaging Details :
Retail Packaging
Delivery Time :
5-7 working days
Payment Terms :
T/T, Western Union, Paypal, L/C
Supply Ability :
6000/ month
Type :
Digital Camera
Style :
Bullet Camera
Technology :
Infrared
Special Features :
Waterproof / Weatherproof
Sensor :
CMOS
IR LEDS :
42PCS, 50m
IP66 :
YES
ONVIF :
YES
Frame Rate :
25fps
Resolution :
1920 X1080
Description

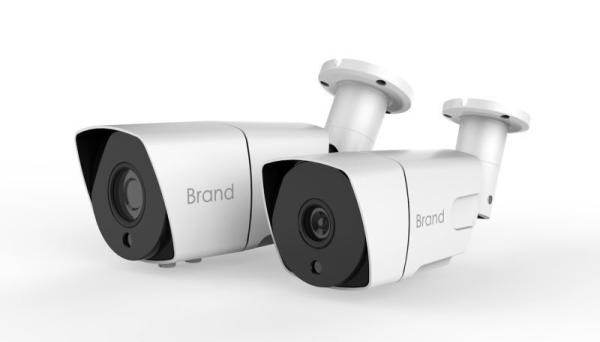

Waterproof Megapixel HD IP IR bullet Camera (42 IR LED)

Model No.:CV-XIP0230HWB

Manual varifocal zoom lens 2.8-12mm 2.0 Magepixel effective night vision distance 50m

Main feature:

  • Professional design for HD network camera, small, beautiful and delicate, best for home security.

  • Material: aluminum alloy, innovative patented heat dissipation structure, make HD camera can works well under high temperature.

  • 2.0megapixel, 1080P progressive scan
  • advanced digital signal processing technology, high brightness imported SMT IR source, show the best HD video effects in both day and night environment.

  • 3.0 Megapixel HD manual varifocal Lens: 2.8-12mm

  • 42 IR LED, effective night vision distance is 50m, excellent performance in dark environment.

  • Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.

  • ONVIF protocol, can provide the SDK.

    Optional back-end products for the system:

    IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.

    Technical parameters:

Model: CV-XIP0230HWB
Camera Imaging sensor: 1/2.7″ SC2135 CMOS sensor
Scanning mode: Progressive scanning
Illumination: color 0.6Lux@F1.2,black/white:0.08 Lux@F1.2, IR on 0 lux
Lens: 3.0 Megapixel HD manual varifocal Lens: 2.8-12mm
Day and night switch: IR-CUT dual optical filters auto switch in day and night
DNR: 3D-DNR
IR source: 42pcs IR Led
Effective night vision distance: 50 meters (measured value without light condition)
Standard compression Image compression: H.264
Video compression: H.264, support dual-stream, AVI format; support stream 0.1M ~ 6Mpbs adjustable;support frame rate from 1 to 25 frames / sec adjustable;
Image Max image size: 1920X1080
Frame rate: 1920X1080@ 25 fps
Function Interface protocol: ONVIF 2.4

Network

connection

 1 RJ45, 10/100M Ethernet adaptive interface; support RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP network protocols
Intelligent alarm: Motion detection, shadow alarm, network cable break, IP address conflict
POE

YES (optional), IEEE802.3at/af Standard

PoE/IN:37-57V(15.4W), DC/OUT:12V/1A(12.95W)
Lightning Protection Power, network, POE comprehensive lightning protection, in line with national standards GB/T17626.5, the international standard IEC61000-4-5.
features Support WEB configure, support for OSD, support real-time video transmission,support mobile surveillance, support for mobile detection alarm center after the screen pop-up reminders and linkage; supports JPEG capture; support unified client remote monitoring software,MYEYE platform system applications; provide perfect the SDK development package;
Basic parameter Power input: DC 12V±10%
Power consumption: 1W (IR off) / 9.5W (IR on) 1.1W / 9.6W (IR on)
Work environment: -35℃ ~ 60℃, humidity is less than 95% (no condensation)
