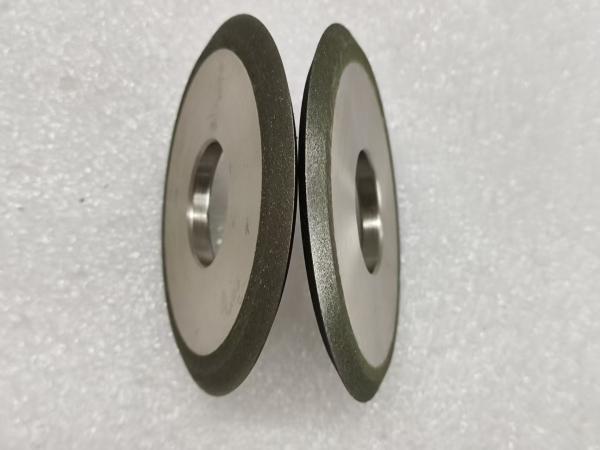

Diamond Cutting Wheel Product Description

Product Name: Diamond Cutting Wheel
Product Introduction:
Diamond cutting wheel is a super-hard cutting tool made of diamond particles as abrasives and consolidated by electroplating. With the extremely high hardness and wear resistance of diamond, it can efficiently cut high-hardness materials such as stone, concrete, ceramics, glass, semiconductors, and cemented carbide. Its design takes into account both cutting efficiency and precision, and is widely used in construction, stone processing, electronic manufacturing, automotive industry and other fields.
Grinding characteristics of electroplating method: high efficiency, good grinding performance, rough finishing surface, ease manufacturing of difficult and minimum type wheel.

Product Features:

Superior cutting performance
Diamond abrasive has high hardness (Mohs hardness 10), which can quickly cut hard and brittle materials and reduce edge collapse.
Efficient heat dissipation and safety
The cutting wheel is designed with heat dissipation holes or segmented structure to reduce heat accumulation and extend life.
High-strength matrix (aluminum alloy/steel) ensures stability during high-speed rotation and reduces the risk of breakage.
Flexible specification selection
Outer diameter range: 50mm-1200mm (handheld tools to large cutting machines).
Thickness range: 0.2mm-10mm (thin sheet cutting to rough processing full coverage).
Ultra-thin design (thickness can be up to 0.2mm) for high-precision grooving or brittle material cutting.

Product specifications:

Outer diameter (D) : 50mm, 100mm, 150mm, 300mm, 600mm, 1200mm (customization supported)
Aperture (H) : 10mm, 16mm, 20mm, 22.23mm (compatible with angle grinder/cutting machine spindle)
Thickness (T): 0.2mm (ultra-thin electroplated wheel), 1.0mm-3.0mm (standard wheel), 5mm-10mm (heavy-duty cutting wheel)
Diamond concentration : 15%-50% (select according to material hardness and cutting requirements)
Line speed Recommended safe line speed: 30-80 m/s (please refer to the product label)

Of course, We can customize the size according to your requirements

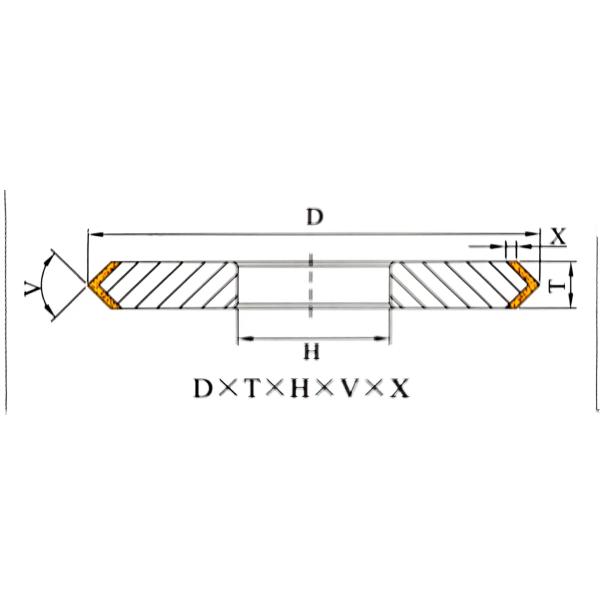

D: Diameter, T: Thickness, H: Inner hole, X: Abrasive width, V: angle

Precautions for use:

Equipment matching: Make sure that the power of the cutting machine matches the specifications of the cutting wheel. Overspeed is strictly prohibited.
Cooling measures: Choose a heat dissipation design cutting wheel for dry cutting; continuous water supply cooling for wet cutting to increase life.
Safety protection: Wear goggles and gloves during operation to ensure that the workpiece is fixed firmly.
Regular inspection: Check whether the cutting wheel is damaged before use, and replace it in time if it is severely worn.

Packing and Shipping:

Electroplated diamond grinding wheels are carefully packaged for shipment. Each wheel is placed in a plastic bag and wrapped in bubble wrap to prevent it from being scratched or damaged during transit. The package is then placed in a cardboard box and taped securely.

All orders are shipped via a reliable courier service. The tracking information and estimated delivery time are provided to customers once the order is shipped.
