1V1 45 Degrees Hybrid Grinding Disc With Hybrid Bonded Abrasives Diamond Wheel
1V1 45 Degrees Hybrid Grinding Disc With Hybrid Bonded Abrasives Diamond Wheel
1V1 45 Degrees Hybrid Grinding Disc With Hybrid Bonded Abrasives Diamond Wheel
1V1 45 Degrees Hybrid Grinding Disc With Hybrid Bonded Abrasives Diamond Wheel
1V1 45 Degrees Hybrid Grinding Disc With Hybrid Bonded Abrasives Diamond Wheel
1V1 45 Degrees Hybrid Grinding Disc With Hybrid Bonded Abrasives Diamond Wheel
1V1 45 Degrees Hybrid Grinding Disc With Hybrid Bonded Abrasives Diamond Wheel
1V1 45 Degrees Hybrid Grinding Disc With Hybrid Bonded Abrasives Diamond Wheel
1V1 45 Degrees Hybrid Grinding Disc With Hybrid Bonded Abrasives Diamond Wheel
1V1 45 Degrees Hybrid Grinding Disc With Hybrid Bonded Abrasives Diamond Wheel
1V1 45 Degrees Hybrid Grinding Disc With Hybrid Bonded Abrasives Diamond Wheel
1V1 45 Degrees Hybrid Grinding Disc With Hybrid Bonded Abrasives Diamond Wheel
Specifications
Brand Name :
JC
Model Number :
1V1
Certification :
ISO
Place of Origin :
China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000/month
Delivery Time :
5-8 work days
Packaging Details :
Wooden box
Package :
Carton Box
wheel Size :
125*10*31.75*6mm
Concentration :
C100 C125
Colour :
Gray
Abrasives :
diamond
Delivery :
By express
Mesh :
D64 D91
Description

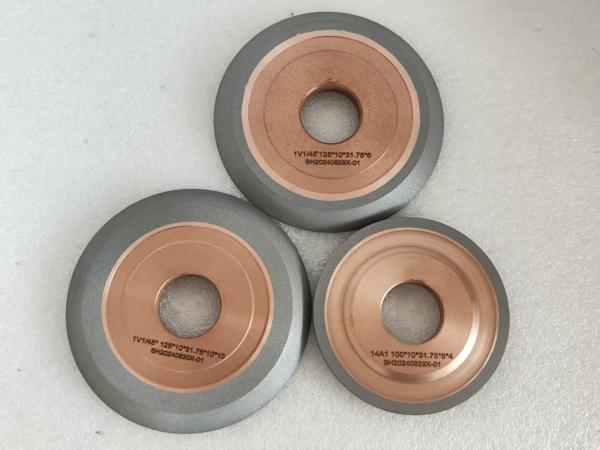

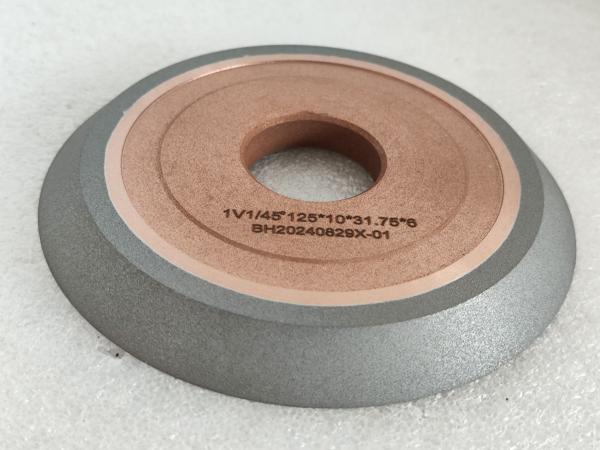

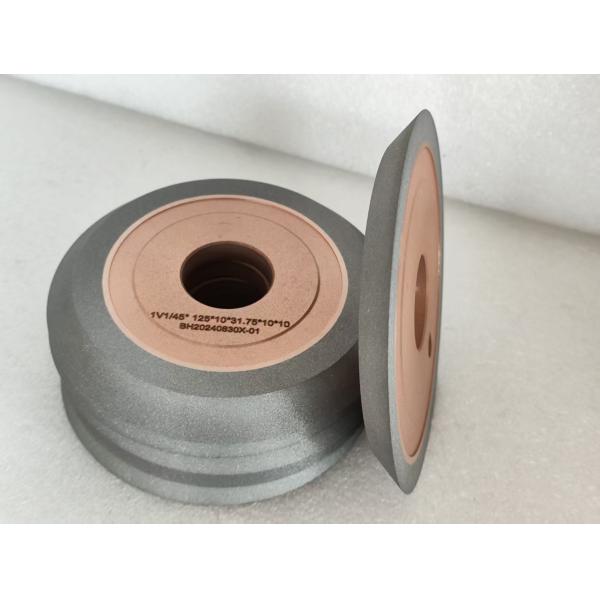

1V1 45 Degrees Hybrid Grinding Disc With Hybrid Bonded Abrasives Diamond Wheel

Hybrid bonds combine the best of two or more different types of bonds — Resin Bond, Metal Bond, etc. — and/or processing methods to create a “Hybrid” that encompasses enhanced properties to deliver high performance results for some of manufacturing’s toughest grinding applications.

Size Diameter Thickness Inner hole Grit Size
100 125 150 mm etc 10mm etc 31.75mm etc

D64 D91 C100 C125

Advantages of hybrid CBN diamond wheels

1. Resin (polyimide) bond. Good grinding performance and surface roughness, elasticity, minimal chipping
2. Metal bond. High wear resistance and high thermal stability, excellent grinding ability and long tool life
3. Dressing interval: more than double
4. Tool life: more than 1.5 times

Applications

Hybrid Diamond & CBN Grinding wheels can be utilized in numerous grinding applications. These include but are not limited to:

Flute grinding
Gashing
Cutoff
Endwork
Outside Diameter grinding
Pinch / Peel grinding
Insert grinding

1V1 45 Degrees Hybrid Grinding Disc With Hybrid Bonded Abrasives Diamond Wheel

If you need to customize, please provide the following information:

1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;

2. Abrasive, abrasive sand particle and concentration;

3. Adhesive;

4. Wheel application;

5. Pictures and drawings of wheels;

We can then design and quote for you

NOTE: If you do not find the product you want in this website, contact us first, we can design and produce any specification of grinding wheel head according to your requirement.
