CCD Color Separator Machine Of 2.6Kw Power & Production Capacity 1.8 Ton ~ 2.5 Ton Per Hour For Coffee Bean
CCD Color Separator Machine Of 2.6Kw Power & Production Capacity 1.8 Ton ~ 2.5 Ton Per Hour For Coffee Bean
CCD Color Separator Machine Of 2.6Kw Power & Production Capacity 1.8 Ton ~ 2.5 Ton Per Hour For Coffee Bean
CCD Color Separator Machine Of 2.6Kw Power & Production Capacity 1.8 Ton ~ 2.5 Ton Per Hour For Coffee Bean
Specifications
Brand Name :
Hons+
Model Number :
6SXZ-252
Certification :
ISO/SGS/CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, T/T
Supply Ability :
200 Sets Per Month
Delivery Time :
7 ~ 14 Days
Packaging Details :
Wooden Case
Type :
S4
Capacity :
1.8~2.5T/H
Voltage :
AC220V/50HZ
Power :
2.6Kw
Size :
L 1870mm * W 1595mm * H 2040mm
Weight :
1000Kgs (+/-5%)
Description

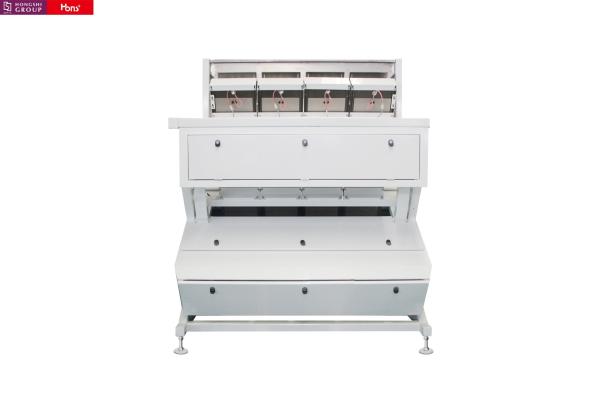

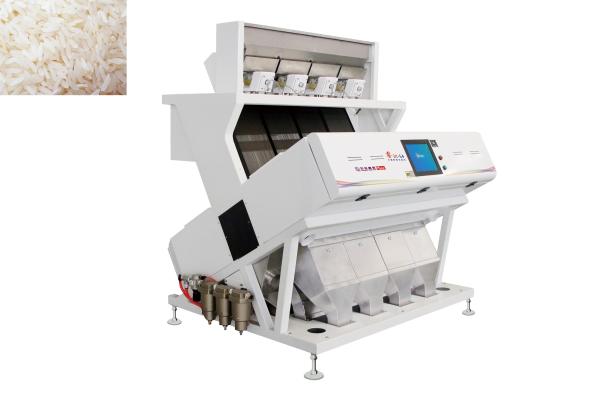

Multiple Chute Type CCD Color Sorter Machine For Coffee Bean

Working principle
The material comes from the top hopper into the machine, goes through the vibration device, decline along the chutes ,enter into the top of channels, then fall into sorting box and pass through the monitor and background board. Under the lights, CCD sensor received synthesis of light from the selected materials, make the output signal, drive the ejector operation which can blow the discolor materials to the rejected hopper, and the good materials will fall into the finished hopper.

CCD Color Separator Machine Of 2.6Kw Power & Production Capacity 1.8 Ton ~ 2.5 Ton Per Hour For Coffee Bean

CCD Color Separator Machine Of 2.6Kw Power & Production Capacity 1.8 Ton ~ 2.5 Ton Per Hour For Coffee Bean

Characteristics

1 Remote Interconnection Easy interconnection through terminal of smart screen, enjoy the wisdom of life because of intelligent control.
2 Remote operation The original cloud intelligent system is interconnected with the intelligent terminal platform, so as to supervise the production, processing and parameter adjustment at any time and anywhere.
3 Remote diagnosis The boot system is capable of self testing, real-time detection of all parts of the machine system, and automatic judgment and handling of exceptions to ensure normal operation of the equipment.
4 Remote upgrading Intelligent self testing system, to achieve one button system upgrading, provide the best control experience.
5 Remote training

The highly efficient, convenient and real-time interactive training system developed independently, creating a zero distance service for users.

Technical Charactoristic

Intelligent image processing system


International leading full color high speed three-line scanning CCD sensor (54 million pixel *3), perfect processing of small defects in materials, the minimum scanning and identification area can reach 0.2mm X 0.2mm=0.04mm2; Meanwhile, multi-thread processing capacity for “Color + Shape” .


High speed feeding system


Patent high frequency vibrator, antioxidant anode treatment chute, greatly enhance production capacity, the output increased by 20%~30% comparing with similar products.

Intellectually controlled non pole dimming system


Intelligent LED shadow-less cold light source, matching industry leading digital non pole dimming technology, it can setup the best brightness & color according to the color selection requirements for raw material, which achieve more accurate recognition, lower energy consumption ( lower than 15%~20% comparing with similar products) and more stability.

Massive Datebase And Multiple Function


Massive database with storage of unlimited modescan achieve multiple function of one machine. Single machine can be applied to rice, grains, cash crops and other applications, provide maximum value of product and best convenience of massive datebase for customer.

Sorting Result

Raw Material

CCD Color Separator Machine Of 2.6Kw Power & Production Capacity 1.8 Ton ~ 2.5 Ton Per Hour For Coffee Bean

Accepted

CCD Color Separator Machine Of 2.6Kw Power & Production Capacity 1.8 Ton ~ 2.5 Ton Per Hour For Coffee Bean

Rejected

CCD Color Separator Machine Of 2.6Kw Power & Production Capacity 1.8 Ton ~ 2.5 Ton Per Hour For Coffee Bean

Company & Product

CCD Color Separator Machine Of 2.6Kw Power & Production Capacity 1.8 Ton ~ 2.5 Ton Per Hour For Coffee Bean

CCD Color Separator Machine Of 2.6Kw Power & Production Capacity 1.8 Ton ~ 2.5 Ton Per Hour For Coffee Bean

CCD Color Separator Machine Of 2.6Kw Power & Production Capacity 1.8 Ton ~ 2.5 Ton Per Hour For Coffee Bean
