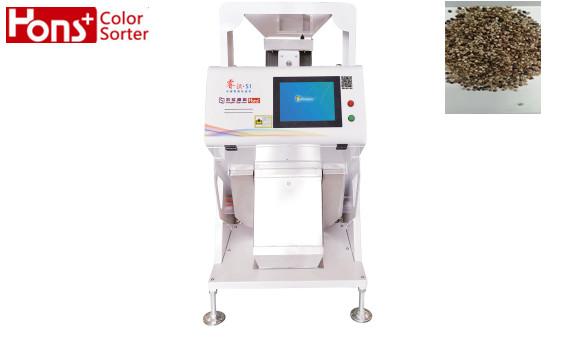

Multiple Function Rice Coffee Beans Sorter 63 Channels
Multiple Function Rice Coffee Beans Sorter 63 Channels
Multiple Function Rice Coffee Beans Sorter 63 Channels
Multiple Function Rice Coffee Beans Sorter 63 Channels
Specifications
Brand Name :
Hons
Model Number :
6SXM-63(CCD)A
Certification :
CE/SGS
Place of Origin :
Anhui,China
MOQ :
1 pc
Price :
$6500-$8500
Payment Terms :
D/A, D/P, T/T, L/C
Supply Ability :
500sets/month
Delivery Time :
5-8 working days
Packaging Details :
Wooden case
Product name :
Rice Color Resorter
Input voltage :
AC220V/50HZ
Capacity(T/H) :
0.6-1T/H
Prouct Size :
L 910mm * W 1620mm * H 1550mm
Power(KW) :
≤1.5
Product weight :
350kgs
Warranty :
1 year
Channel :
63 channels
CCD sensor :
Toshiba
Feature :
High quality FPGA processing
Description

Multiple Function Rice/ Coffee Beans Color Sorting Machine Separator Processing

Sorting Materials:

1. Beans: soybeans, mung beans, red beans, coffee beans,chickpea,red lentils

2. Rice: white rice, parbouled rice,black rice, yellow rice, brown rice, barley rice
3. Nuts: peanuts, ground nut,cashew nut, walnut meat,pine

4. Wheat: Buckwheat,Quinoa,Qatmeal.
5. Vegetable: dry onion,daylily,back fungus,sea vegetables
6. Food: vegetable seeds, cumin seeds,prickly ash seeds,dried shrimps,small shrimp
7. Industrial: plastic, broken glass,quaze,ore,scrap metal,slag,salt,refractory

CCD color sorter machine parameters

Name S1 S3 S5 S7
Model 6SXM-63 6SXM-189 6SXM-315 6SXM-441
Capacity(Kg/H) 800Kg-1000Kg 2000Kg-3000Kg 3000Kg-4000Kg 5000Kg-6000Kg
Voltage(V) AC220V/50HZ AC220V/50HZ AC220V/50HZ AC220V/50HZ
POWER(KW) <1.5 <2.4 <3.0 <4.0
Weight(KG) 350Kg 800Kg 1250Kg 1600Kg
Dimension(L*W*H/MM) 910*1620*1550 1628*1595*2040 2210*1595*2010 2836*1595*1850
Air Consumption 0.9 m³/min 1.8m³/min
1.8 m³/min
3 m³/min
Air pressure 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa
Air compressor power 4kw 7.5Kw 11kw*2 15kw*2
Air tank 600L 1000L 1000L
Cooling Model wind cooling wind cooling wind cooling wind cooling
Mini Resolution( mm²) 0.03 0.03 0.03 0.03

CCD color sorter machine strength

Cloud braininterconnection

1. Remote interconnection: Easily connect to touch screens and mobile devices, intelligent control to enjoy the wisdom of life.

2. Remote diagnosis: Self -inspection of the system can realize real -time monitoring of the machine component, automatically judge and fail to eliminate the normal operation of the color chaos.
3. Remote upgrade: The intelligent self -inspection system realizes the single -key system upgrade and provides the best operating experience
4. Remote training: an efficient and convenient real -time interactive training system, independently develop, and create non -distance services for users.

 Cloud brain vision

Intelligent image collection system
Automatically collect ultra -space data, such as color, shape, size, and defects to accurately obtain raw material characteristics.

The international leading full -color high -speed three -line scanning CCD sensor (54 million pixels * 3), the perfect treatment of small defects in the material, the minimum scanning and identifying area can reach 0.2mm * 0.2mm = 0.04mm²; at the same time, "color+shape" more Thread processing ability.

Multiple Function Rice Coffee Beans Sorter 63 Channels


Sorting Perofrmance

Multiple Function Rice Coffee Beans Sorter 63 Channels

Multiple Function Rice Coffee Beans Sorter 63 Channels

FAQ

 1. How many days for production? In general,within8-12workers days after getting deposit payment.  2. Are you a trading company or a factory,will it be cheaper to buy from your side? More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas,more reliable quality,more timely service. The same quality, more favorable price.  3. Do you provide product installation,training and after-sales service? Most products can be installed and trained through online video and text mode.If special products need to be installed on site,we will arrange technicians to install and debug on site.  4. We are small buyer , can we buy your products locally , do you have local agents? If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.

Why choose us
 1. More than 10 years of experience focusing on sorters. One of the most advanced manufacturers in Hefei, Anhui. 2. After-sales service guarantee: We have a professional after-sales service team, one-to-one customer service to help customers install and debug. 3. We have service stations in Southeast Asia and cooperative distributors in more than 50 countries. 4. Raw material quality assurance: The raw materials we purchase are all certified qualified products. 5. Quality process assurance: We have passed the authorization of CE and ISO quality management systems, and each production process is strictly carried out in accordance with the standards. 6. System test: Our technical engineers check the product performance, and even each component undergoes strict aging test to ensure that the factory products fully meet customer requirements. 7. Delivery guarantee: We have a professional packaging operation team and independent export qualifications to ensure that the products are delivered to customers safely and stably.

Multiple Function Rice Coffee Beans Sorter 63 Channels

Multiple Function Rice Coffee Beans Sorter 63 Channels
