10Mpa Custom CCM Parts Withdrawal Straightener Customized Dimension
10Mpa Custom CCM Parts Withdrawal Straightener Customized Dimension
10Mpa Custom CCM Parts Withdrawal Straightener Customized Dimension
10Mpa Custom CCM Parts Withdrawal Straightener Customized Dimension
10Mpa Custom CCM Parts Withdrawal Straightener Customized Dimension
10Mpa Custom CCM Parts Withdrawal Straightener Customized Dimension
10Mpa Custom CCM Parts Withdrawal Straightener Customized Dimension
10Mpa Custom CCM Parts Withdrawal Straightener Customized Dimension
Specifications
Place of Origin :
Jiangsu Wuxi China (mainland)
Brand Name :
Haijun MACHINERY
Packaging Details :
Container
Delivery Time :
1 month
Payment Terms :
T/T , L/C
Certification :
ISO 9001
MOQ :
1 Set
Price :
Negotiable
Condition :
New
Voltage :
380v
After-sales :
Service Provided: Engineers available to Home installation and debugging
Strand Quality :
1 - 8 / Customize
Casting Type :
Customize
Weight :
Customized Dimension
Warranty :
1 year
Working Hours :
24hrs
Description

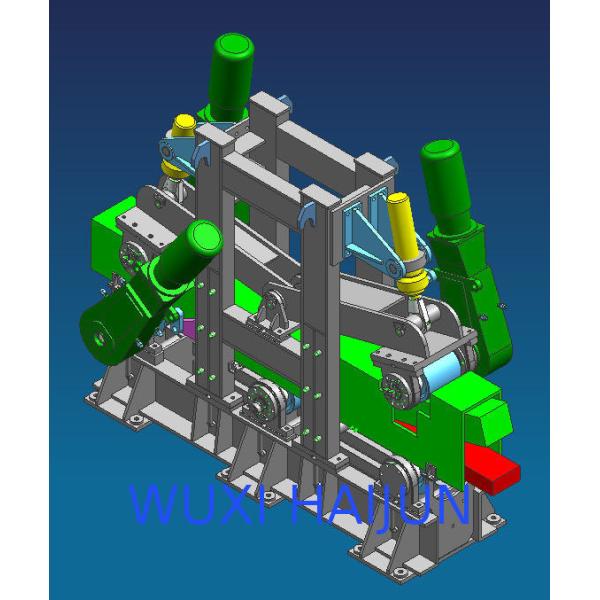

Custom Continuous Casting Machine Parts , Withdrawal Straightener

Main technical parameters of withdrawal straightener:

Type: Integrated rack five-roller withdrawal straightener

Driving mode/screwdown mode: Electric drive/hydraulic screwdown

Straightening radius: 6000mm-12000mm-∞

Straightening temperature: 950℃～1050℃

Drawing speed: 0.3～3.0m/min

Roller size: Φ300mm × 230mm

Mode of speed control: Variable (5-50Hz)

System working pressure: 10Mpa

Hydraulic medium: Mineral oil

For billet guiding and straightening. The drawing speed is adjustable to meet the different speed requirements of different steel grades.

This equipment consists of the rack, screwdown and five rollers up and down, drive system, water-cooling system, etc.

Before casting, the withdrawal straightener transfers the dummy bar to the specified position in the mold; during pouring, it forcibly draws the dummy bar and the billet solidifying with the bar out from the mold; after passing the supporting and guide device of the secondary cooling, it separates the billet and dummy bar and begins continuous drawing and straightening.
