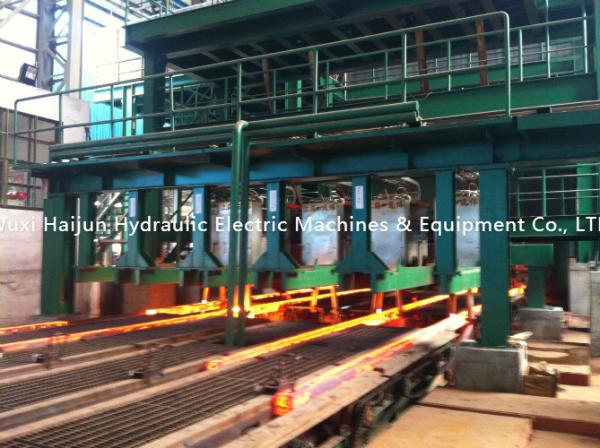

Water Secondary Steel Casting Machine for Steel Billet / Metering Nozzle
Water Secondary Steel Casting Machine for Steel Billet / Metering Nozzle
Water Secondary Steel Casting Machine for Steel Billet / Metering Nozzle
Water Secondary Steel Casting Machine for Steel Billet / Metering Nozzle
Specifications
Place of Origin :
Jiangsu Wuxi China (mainland)
Brand Name :
Haijun
Model Number :
R6M,R8M,R10
MOQ :
1 Set
Packaging Details :
Container
Delivery Time :
2 months
Payment Terms :
T/T , L/C
Supply Ability :
30 strands CCM per year
Certification :
ISO19001:2008
Price :
Negotiable
Condition :
New
Power(W) :
22kw-1000kw
Product name :
R4M，6M,8M,10M,12M CCM billet
Packing :
wooden case;container
Dimension :
as per customer's need
Warranty :
1 year
Voltage :
380v
Weight :
3-10tons
After-sales Servise :
Engineers available to service machine
Delivery date :
2 months
Description

Water Secondary Cooling Steel CCM for Steel Billet , Metering Nozzle

Quick Detail:

radius: R6M, R8M, R10M

Strand number :1 / 2 / 3 strands

with ISO certification

Low energy and high efficiency

We can produce high quality continuous casting machines from 1 to 8 strands with the lowest equipment manufacturing cost.We can design, manufacture the up-to-date billet continuous casting machine in accordance with the user's steelmaking capacity, billet size, steel grades and the user's field conditions.

Description:

1. Basic standby technical parameters:

Steel billet casting machine radius

6m,8m,10m

Strand quantity

1,2,3 strands

Ladle support type

Ladle turret,Ladle car

Tundish carriage

Semi-portal, cross sliding function

Casting method

Metering nozzle, open casting

Secondary cooling

Water cooling , 1 adjusting circuit

Withdrawal straightening machine

Totally 5 roller, progressive straightening

Roll table

Chain group centralized drive

Dummy bar

Rigid, with self-adapting dummy bar head

Billet cutting

Hydraulic cutting machine

Billet conveying

Group centralized live roller table

Cooling bank type

Simple cooling bed

2. Technical process description and capacity of steel billet CCM

Induction furnace:

Nominal capacity

30T

Tap-to-tap cycle

60min

Furnace quantity

2set

Production capacity

Working days

330 days/year

Average number of daily furnace

24/day

Production capacity

300,000t/year

3. Casting speed, productivity and strand quantity

Round billet size range:φ60～φ500

Round billet CCM castig speed range:

Φ60～120 1.6～2.5m/min

Φ150～240 0.8～1.2m/min

Φ250～500 0.5～0.8m/min

The calculation results is the ideal state of the production, please according to own actual situation of adjustment.

Steel grade

Casting grade(m/min)

Effective deformation rate(ε)

Allowable deformation rate(εmax)

Straight carbon steel

0.8～2.5

Please refer to the computational table

0.25

Low alloy steel

0.8～2.0

Please refer to the computational table

0.15～0.2

4. CCM equipment parts list

№

Equipment name

1

Ladle turret

2

Tundish car

3

Tundish

4

Mould

5

Foot roll of mould

6

Mould cover

7

Oscillator device

8

Secondary cooling spray tube

9

Secondary cooling guiding section rod

10

Secondary cooling vapor exhausting system

11

Withdrawal and straightening machine

12

Casting blank vibration prevention system

13

Dummy bar

14

Dummy bar storage device

15

Shears approach roller

16

Flame cutting machine

17

Automatic cut-to-length device

18

Travelling roller

19

Knockout roller

20

Steel transverse delivering machine

21

Hydraulic station system

22

Secondary cooling water breaker

23

Cooling automation water distribution plant

24

Electric control equipment

24.1

Control panel

24.2

Field instrument

24.3

Computer system

25

Steel platform
